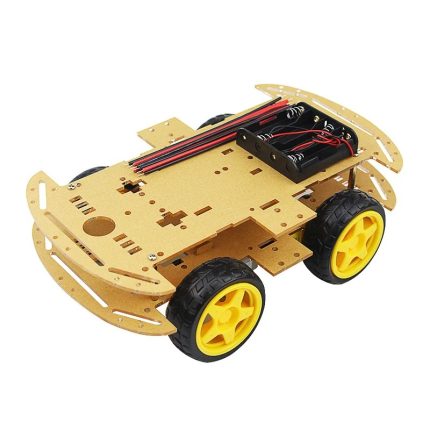

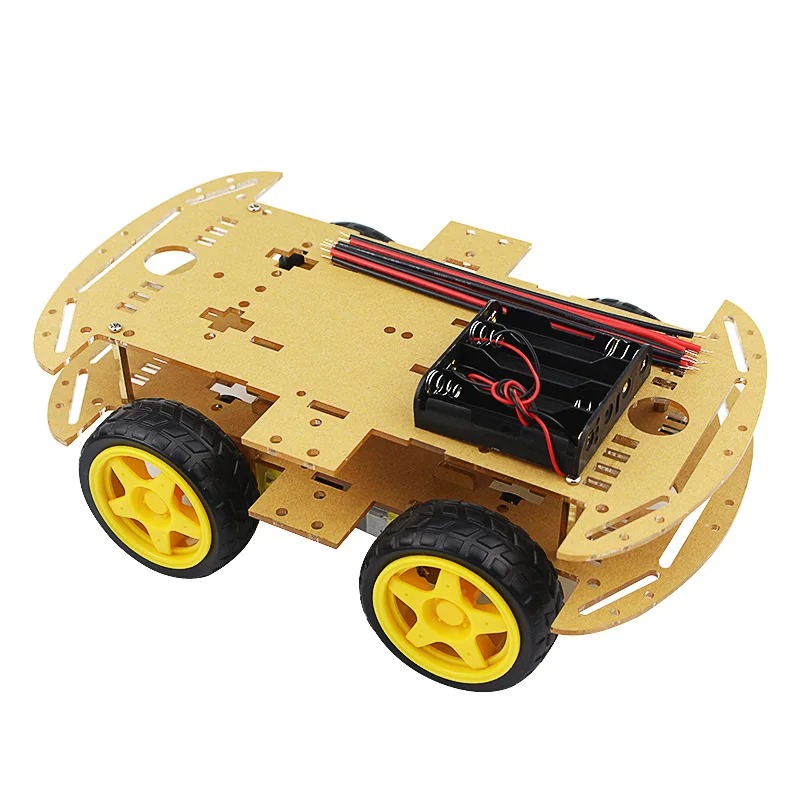

4WD Smart Robot Car Transparent Acrylic Chassis Kit
- 🤖 4WD smart robot car chassis kit (transparent acrylic)
- ⚙️ 4-wheel drive design for better traction and stability
- 🧩 Plenty of mounting holes for Arduino, drivers, and sensors
- 🔋 Space for battery pack and control boards
- 🛠️ Easy assembly—great for beginners and STEM learning
- 🚗 Ideal for obstacle avoidance, line following, and RC robots
- 📦 Lightweight acrylic body with clean transparent look
- ✅ Perfect base for robotics experiments and competitions
450,00 EGP
Payment Methods:
Description
The 4WD Smart Robot Car Transparent Acrylic Chassis Kit provides the ultimate structural foundation for bringing your custom robotic projects to life. Designed with both beginners and advanced DIY hobbyists in mind, this kit features a high-quality, double-layer transparent acrylic frame. The dual-deck design provides a clean aesthetic while offering extensive surface area and pre-drilled mounting holes to easily secure microcontrollers (like Arduino Uno or Mega), motor drivers (such as the L298N), sensor arrays, and power supplies.

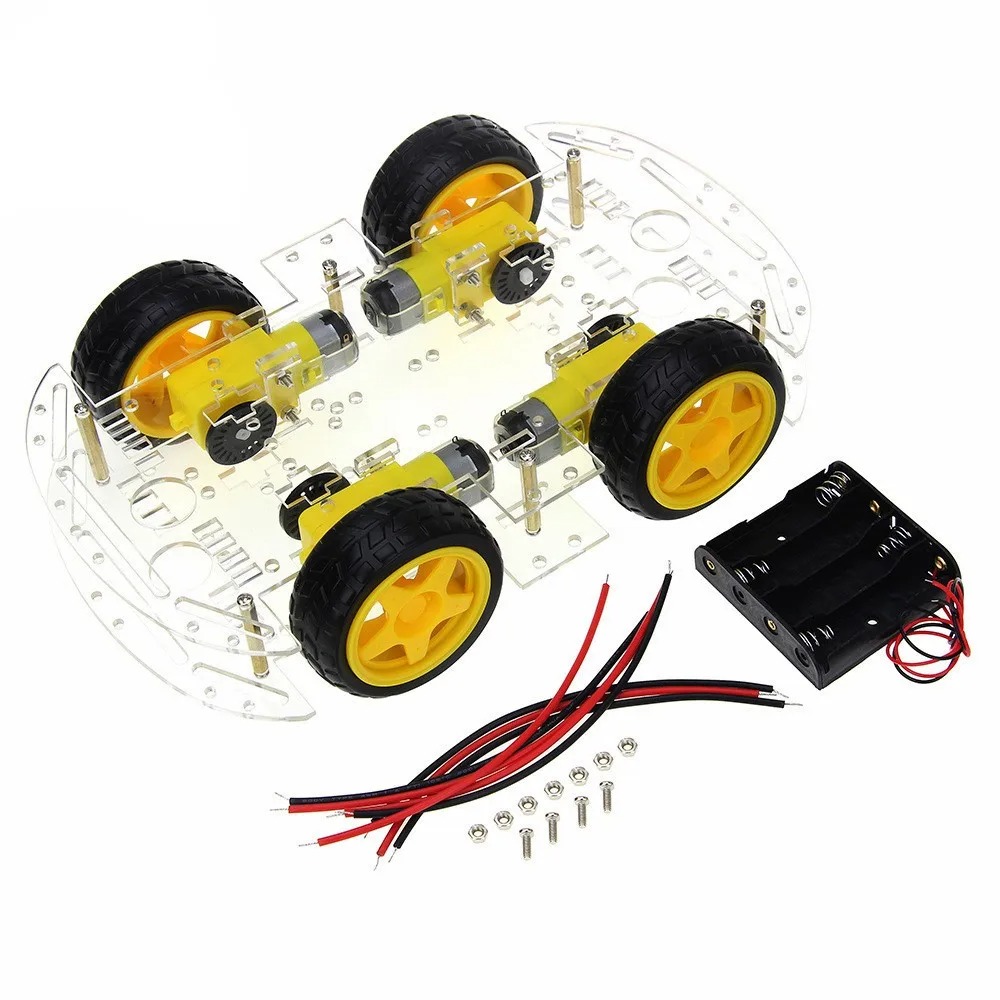

Powered by four independent TT DC gear motors, this 4-wheel drive platform delivers excellent traction, stability, and maneuverability across various indoor surfaces. Whether you are building an obstacle-avoiding rover, a fast line-following robot, or a Bluetooth-controlled smart car, this chassis provides the mechanical reliability needed. The kit comes completely disassembled but includes all the necessary brass standoffs, screws, wheels, and a battery box, making the mechanical assembly straightforward so you can focus on the wiring and programming.
Key Features
-

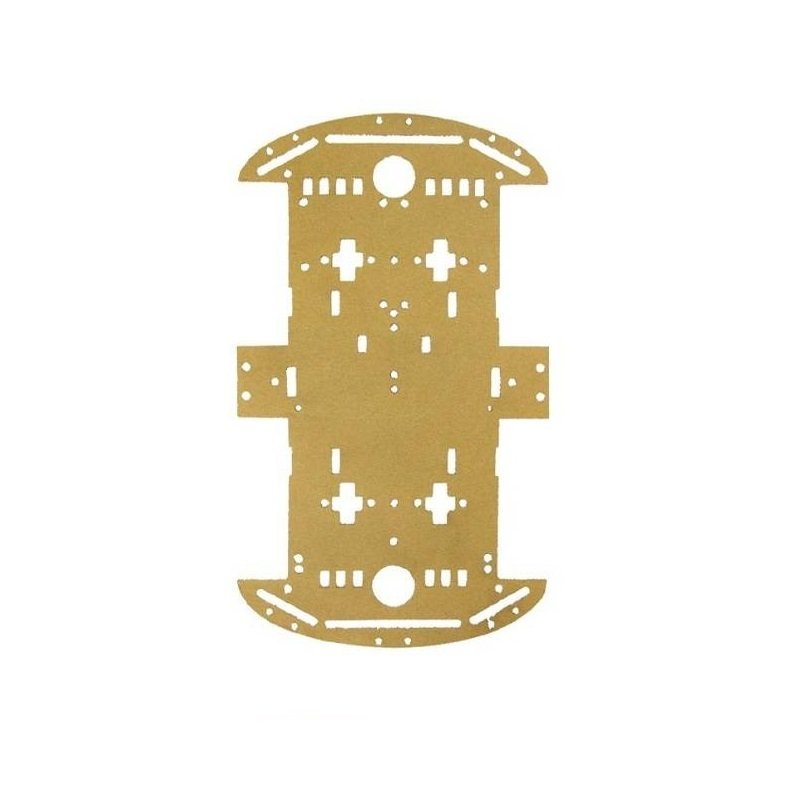

Double-Deck Acrylic Frame: Made from durable, transparent acrylic, providing two tiers of mounting space for neat wire management and component placement.
-
True 4-Wheel Drive: Comes with four reliable TT gear motors (1:48 ratio) and 65mm rubber-treaded wheels for superior grip and pushing power.
-
Highly Expandable Design: Pre-drilled with universal mounting holes optimized for standard development boards, ultrasonic brackets, and servo motors.
-

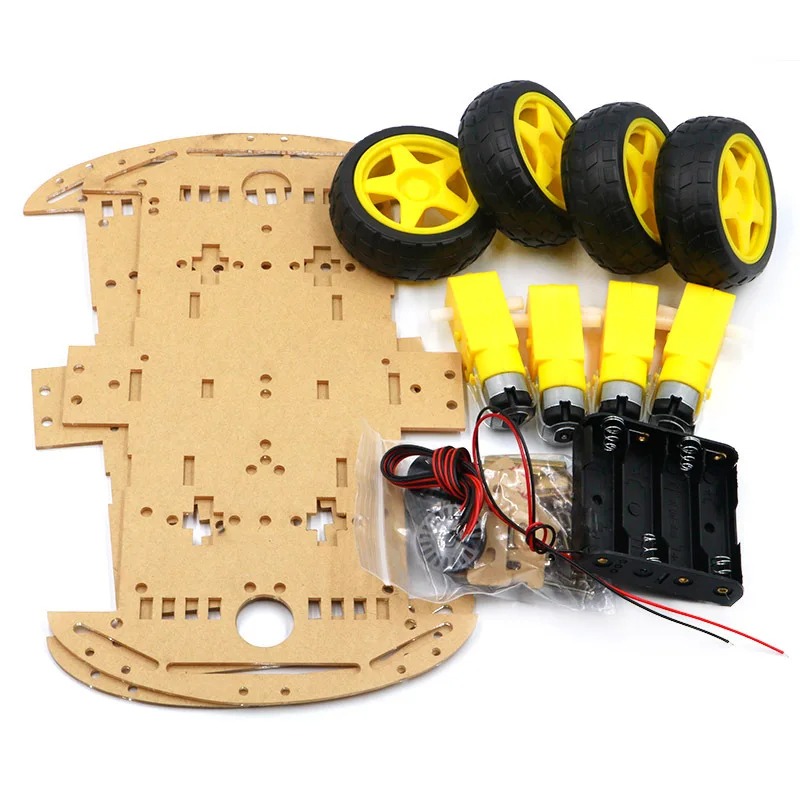

Quick Assembly: Includes all required mechanical hardware, fasteners, and brass spacers for a frustration-free build process.
-
Educational & Prototyping Foundation: An excellent, cost-effective base for learning mechatronics, coding, and closed-loop control systems.
Technical Specifications
| Parameter | Specification |
| Chassis Material | Transparent Acrylic (Double-Layer) |
| Motor Type | 4x TT DC Gear Motors (Dual Shaft) |
| Motor Operating Voltage | 3V to 6V DC |
| Motor Gear Ratio | 1:48 |
| Motor No-Load Speed | ~200 RPM (at 6V) |
| Wheel Diameter | 65 mm |
| Wheel Width | 26 mm |
| Wheel Material | Plastic Hub with Rubber Tire |
| Assembled Dimensions | Approx. 260mm x 150mm x 65mm (L x W x H) |
Specification
General
| WeightWeight | 0,0000 g |
|---|---|
| Product Name | Acrylic Robot Car Chassis (Transparent) |
| Material | Transparent Acrylic |
| Acrylic Thickness | 3 mm (typical) |
| Color | Clear / Transparent |
| Mounting Holes | Pre-drilled for motors, sensors, controllers |
| Compatibility | Arduino, ESP32, Raspberry Pi, Motor Drivers |
| Included Parts | Acrylic Top Plate, Acrylic Bottom Plate, Screws, Nuts, Spacers |
| Heat Resistance | Up to 80°C (approx.) |
| Scratch Resistance | Medium |
| Applications | DIY Robot Car Projects, Robotics Prototyping, Educational Kits |
| Dimension | 200x150x3 mm (per plate, approx.) |
