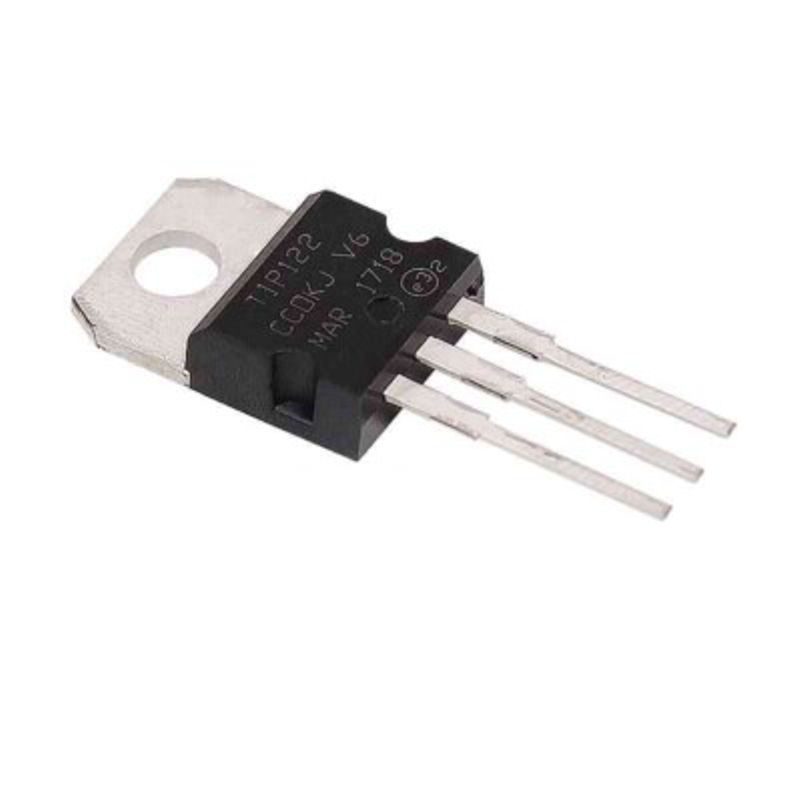

TIP122 Silicon NPN Power Darlington Transistor ( 5A , 100V , 65W ) .
- 🔌 TIP122 silicon NPN power Darlington transistor
- 💪 Current rating: up to 5A
- ⚡ Voltage rating: 100V
- 🔥 Power dissipation: up to 65W (with proper heatsink)
- 🧩 Ideal for driving relays, motors, solenoids, and high-power LEDs
- 🔁 High gain Darlington pair—easy to drive from Arduino/MCU
- 🛠️ TO-220 package for easy mounting and cooling
- ✅ Great for low-side switching and power control circuits
15,00 EGP
In stock
In stock
3
People watching this product now!
Payment Methods:
Description
<p>TIP122 is an NPN type Darlington pair Transistor. It has a high gain value of 1000 and a collector current of 5A.</p> <hr /> <h4><strong>Package Includes:</strong></h4> <p>1 x TIP122 Darlington NPN Transistor.</p>
Specification
General
| Weight Weight | 0,00 g |
|---|---|
| Product Type |
Darlington Power Transistor |
| Model |
TIP122 |
| Polarity |
NPN |
| Application |
Medium Power Switching / Amplification |
| Mounting Type |
Through-Hole |
| Package |
TO-220 |
| Pin Count |
3 |
| Pin Configuration |
B-C-E (front view, typical) |
| Collector-Emitter Voltage (VCEO) |
100 V |
| Collector Current (IC) |
5 A |
| Power Dissipation (PD) |
65 W |
| DC Current Gain (hFE) |
1000 (typical) |
| VCE(sat) |
2.0 V (typical @ IC=3 A) |
| Base-Emitter Voltage (VBE(on)) |
2.5 V (typical @ IC=3 A) |
| Transition Frequency (fT) |
3 MHz (typical) |
| Operating Junction Temperature (TJ) |
-65°C to +150°C |
| Applications |
Motor/relay driving, solenoids, LED strips, power switching |
