FSR402 Round Force Sensor
-
Force-sensitive resistor – resistance decreases with applied pressure
-
12.7mm round sensing area for compact integration
-
Thin and flexible – fits easily into tight or curved spaces
-
Compatible with analog input on Arduino, Raspberry Pi, ESP32, etc.
-
Detects touch, weight, and pressure from ~0.2N to 20N
-
Fast response time – <1 millisecond activation
450,00 EGP
In stock
In stock
Payment Methods:
Description

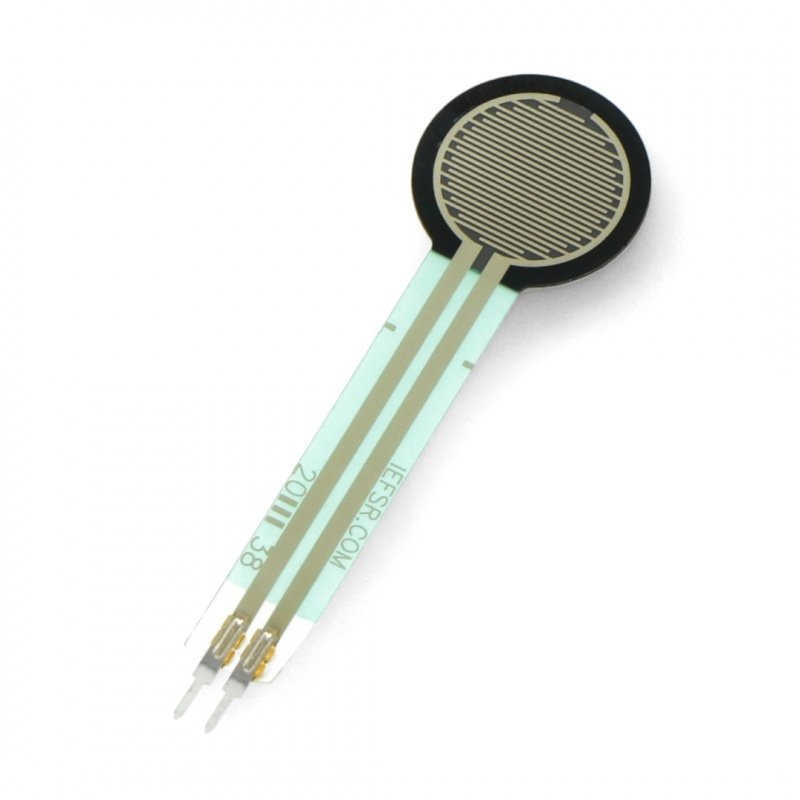

The Grove-Round Force Sensor(FSR402) is a force-sensitive module. At the end of the sensor, there is a round force-sensitive resistor, the resistance of which depends on the pressure applied to this resistor. Simply say, the greater the pressure, the smaller the resistance. However, the output of this sensor is not strictly linear, so we do not recommend it for accurate measurements.
Application:
- Automotive electronics
- Medical Systems
- Industrial controls
- Robotics
- Interactive Educational Toy
Features:
- Analog output
- Reliable mechanical structure
- High durability：Tested to 10 Million actuations, 1kg, 4Hz / -10% average resistance change
Package Includes:
1x Round Force Sensor (FSR402)
Specification
General
| Weight Weight | 0,00 g |
|---|---|
Dimensions
|
60,325 × 19,05 mm |
| sensing-area |
0.5" diameter circle |
| output-signal |
Passive variable |
| force-sensitivity-range |
100 g to 10 kg |
| lifetime |
>10 million actuations |
| sensing-diameter |
0.5" |
