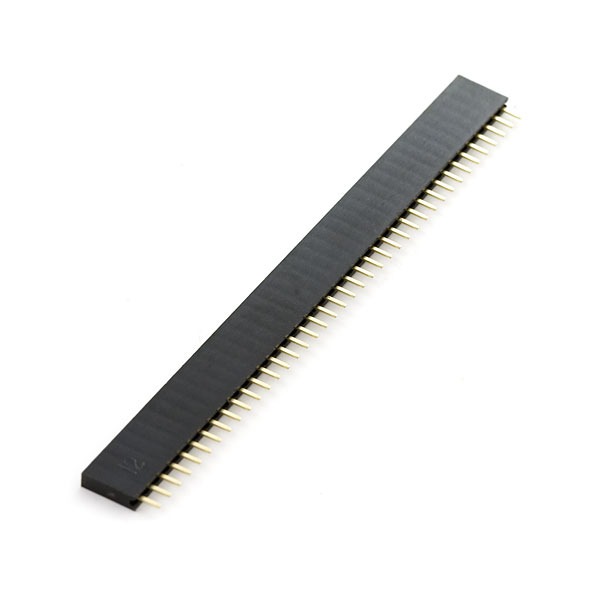

Pin Headers Female 2.54mm : 40-Pin, Straight, Black, 11mm
-
40-pin single-row female header – easily cut to length
-
Standard 2.54mm (0.1″) pitch – fits most PCBs and breadboards
-
Straight vertical mounting for secure connections
-
11mm height – provides extra clearance for tall components
-
Durable black thermoplastic housing
-
Compatible with Arduino, Raspberry Pi, ESP32, and more
-
Ideal for shields, expansion boards, and prototyping
5,50 EGP
Payment Methods:
Description
Pin Headers Female 2.54mm – 40-Pin, Straight, Black, 11mm
This 40-Pin Female Header (2.54mm pitch) is a reliable and essential component for any prototyping or PCB design project. Designed with straight pins and a standard 2.54mm (0.1″) spacing, it is compatible with most Arduino, Raspberry Pi, ESP32, and breadboard-based circuits.
With a black plastic base and an 11mm height, this header provides extra clearance for stacking or accommodating components with taller profiles, making it ideal for shields, expansion boards, and custom connections.
Key Features
-
40 pins in a single row – can be snapped to desired length
-
Standard 2.54mm pitch – fits most PCBs and breadboards
-
Straight female pins for vertical mounting
-
Durable black thermoplastic housing
-
11mm height for extended clearance
-
Ideal for Arduino shields, DIY PCBs, and IoT prototyping
Specifications
| Parameter | Value |
|---|---|
| Type | Female Header (Straight) |
| Pin Count | 40 |
| Pin Pitch | 2.54mm (0.1 inch) |
| Row Configuration | Single Row |
| Height | 11mm (plastic base) |
| Color | Black |
| Material | Copper alloy, plastic |
Package Includes
-
1 × 40-Pin Straight Female Header – 2.54mm Pitch, 11mm Black
🧩 Tip: You can easily cut this header to match the exact number of pins needed for your custom project.
Specification
General
| WeightWeight | 0,00 g |
|---|---|
| Product Name | Pin Headers – Female 2.54mm, 40-Pin, Straight |
| Type | Female Pin Header |
| Pitch | 2.54 mm |
| Number of Pins | 40 |
| Orientation | Straight |
| Color | Black |
| Material | Plastic Body with Tin-Plated Contacts |
| Mounting Type | Through-Hole / PCB |
| Operating Temperature | -40°C to +105°C |
| Dimensions | 40x11x5 (mm) (Length x Height x Width) |
| Applications | Arduino / Raspberry Pi Projects, PCB Connections, DIY Electronics, Prototyping |
| Package Contents | 1× Pin Header Female 2.54mm – 40-Pin, Straight, Black, 11mm |
