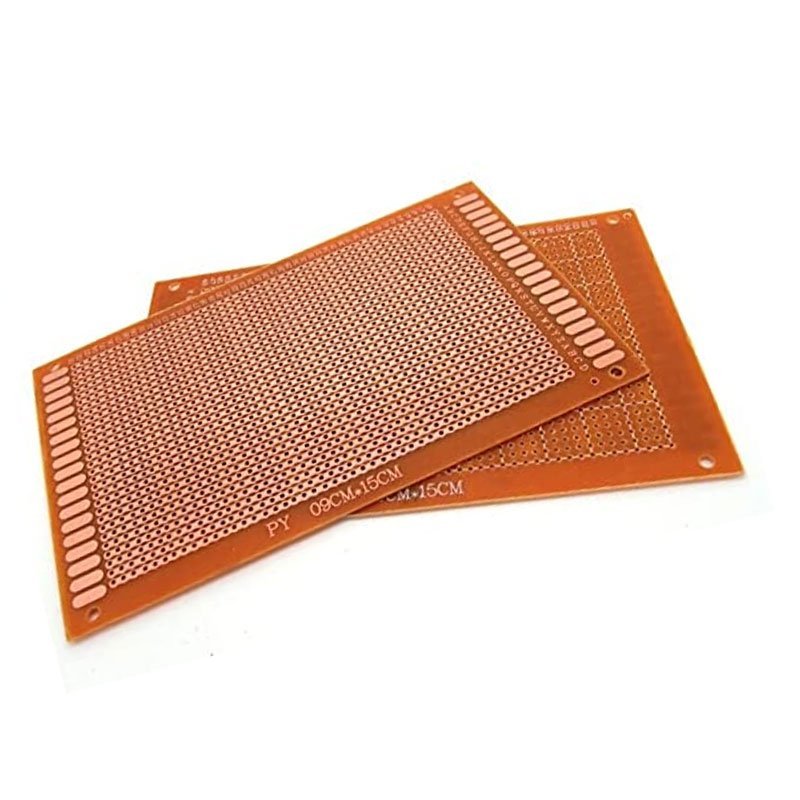

PCB LINE FR2 (9X15 cm2)

<article class=""w-full scroll-mb-[var(–thread-trailing-height, 150px)] text-token-text-primary focus-visible:outline-2 focus-visible:outline-offset-[-4px]"" dir=""auto"" data-testid=""conversation-turn-3"" data-scroll-anchor=""false""> <div class=""m-auto text-base py-[18px] px-3 md:px-4 w-full md:px-5 lg:px-4 xl:px-5""> <div class=""mx-auto flex flex-1 gap-4 text-base md:gap-5 lg:gap-6 md:max-w-3xl lg:max-w-[40rem] xl:max-w-[48rem]""> <div class=""group/conversation-turn relative flex w-full min-w-0 flex-col agent-turn""> <div class=""flex-col gap-1 md:gap-3""> <div class=""flex max-w-full flex-col flex-grow""> <div class=""min-h-8 text-message flex w-full flex-col items-end gap-2 whitespace-normal break-words [.text-message+&]:mt-5"" dir=""auto"" data-message-author-role=""assistant"" data-message-id=""35a1b675-b017-4abb-b5e4-ef709e9199f8"" data-message-model-slug=""gpt-4o""> <div class=""flex w-full flex-col gap-1 empty:hidden first:pt-[3px]""> <div class=""markdown prose w-full break-words dark:prose-invert dark""> <div class=""flex max-w-full flex-col flex-grow""> <div class=""min-h-8 text-message flex w-full flex-col items-end gap-2 whitespace-normal break-words [.text-message+&]:mt-5"" dir=""auto"" data-message-author-role=""assistant"" data-message-id=""0362fa8c-6621-42e0-95a7-8b5e83857cb0"" data-message-model-slug=""gpt-4o""> <div class=""flex w-full flex-col gap-1 empty:hidden first:pt-[3px]""> <div class=""markdown prose w-full break-words dark:prose-invert dark""> <h3><strong>Description:</strong></h3> <p>The <strong>PCB LINE FR2 (9×15 cm²)</strong> is a high-quality single-sided printed circuit board made from FR2 (Phenolic Paper Laminate) material. It is designed for prototyping and small electronic projects. The board provides a durable and easy-to-use platform for soldering electronic components, ensuring stable and reliable connections. Its compact size of 9×15 cm² makes it perfect for various applications, including hobby projects, educational purposes, and circuit development.</p> <hr /> <h3><strong>Specifications:</strong></h3> <ul> <li><strong>Material:</strong> FR2 (Phenolic Paper Laminate)</li> <li><strong>Dimensions:</strong> 9 cm x 15 cm (90 mm x 150 mm)</li> <li><strong>Thickness:</strong> Approximately 1.6 mm</li> <li><strong>Copper Layer:</strong> Single-sided, standard copper-clad</li> <li><strong>Hole Diameter:</strong> ~1 mm (suitable for most component leads)</li> <li><strong>Grid Spacing:</strong> 2.54 mm (0.1 inch, standard spacing)</li> <li><strong>Weight:</strong> Approximately 25-30 grams</li> <li><strong>Thermal Resistance:</strong> Can withstand soldering temperatures (~260°C max for short durations)</li> <li><strong>Usage:</strong> Supports through-hole components for prototyping and circuit design.</li> </ul> <hr /> <h3><strong>Features:</strong></h3> <ul> <li><strong>Compact Design:</strong> The 9×15 cm² size is perfect for small to medium projects.</li> <li><strong>Durable Material:</strong> Made of FR2 for reliability and moderate environmental resistance.</li> <li><strong>Pre-drilled Holes:</strong> Standard grid pattern for easy placement of components.</li> <li><strong>Solderable Surface:</strong> High-quality copper-clad for excellent soldering performance.</li> <li><strong>Versatility:</strong> Suitable for educational, hobby, and professional prototyping projects.</li> <li><strong>IC and Component-Friendly:</strong> Compatible with standard ICs, resistors, capacitors, and other components.</li> </ul> <p>This PCB is an excellent choice for anyone looking to create reliable and well-organized electronic circuits.</p> </div> </div> </div> </div> </div> </div> </div> </div> </div> </div> </div> </div> </article>
