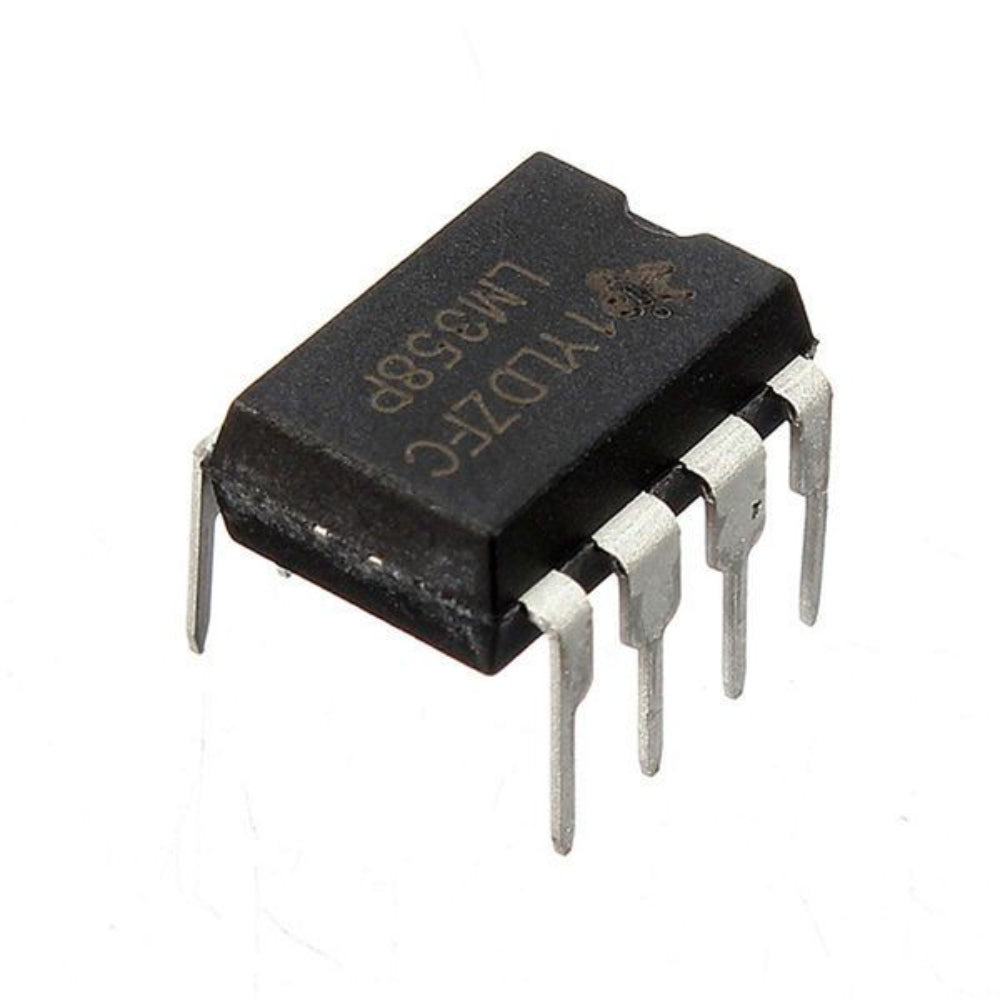

LM358P PDIP-8 High Gain Operational Amplifier
Product Highlights
- Dual Operational Amplifier: Two independent, high-gain op-amps in a single 8-pin package.
- Single Supply Range: Operates reliably from a wide range of 3V to 32V (or ±1.5V to ±16V).
- Low Power Consumption: Minimal drain current makes it ideal for battery-operated portable devices.
- Internal Frequency Compensation: Built-in stability features reduce the need for external components.
- Large DC Voltage Gain: High gain of up to 100dB for precise signal amplification.
- Industry Standard PDIP-8: Easy-to-solder through-hole package, perfect for breadboards and DIY PCBs.
10,00 EGP
11
People watching this product now!
Payment Methods:
Description
Specification
General
| WeightWeight | 0,00 g |
|---|---|
| Product Type | Operational Amplifier (Op-Amp) |
| Model | LM358P |
| Amplifier Type | General Purpose • High Gain • Dual Op-Amp |
| Number of Channels | 2 (Dual) |
| Package | PDIP-8 (Through-Hole) |
| Pin Count | 8 |
| Supply Voltage (Single) | 3 V to 32 V |
| Supply Voltage (Dual) | ±1.5 V to ±16 V |
| Input Offset Voltage | 2 mV (typical) • 7 mV (max typical) |
| Input Bias Current | 20 nA (typical) |
| Gain Bandwidth Product | 1 MHz (typical) |
| Slew Rate | 0.3 V/µs (typical) |
| Common-Mode Input Range | Includes ground (typical) |
| Output Swing | Close to ground (not rail-to-rail high side) |
| Operating Temperature | 0°C to +70°C (LM358P typical grade) |
| Applications | Signal conditioning, sensor amplification, active filters, comparators (basic) |
