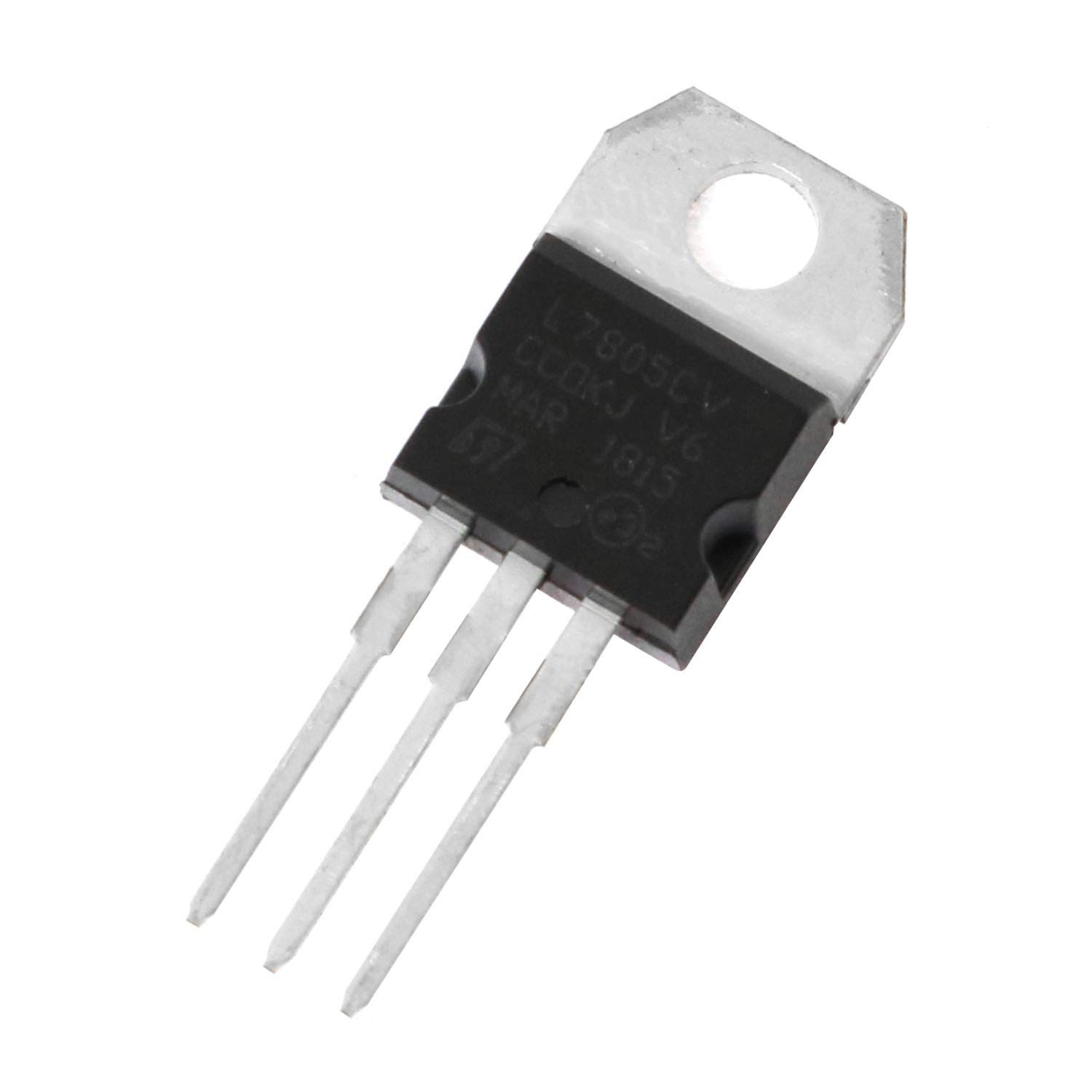

L7805CV Voltage Regulator
8,00 EGP
In stock
-
Output: +5V @ 1.5A
-
Internal thermal and short-circuit protection
-
TO-220 package – supports heatsink mounting
-
Ideal for 5V DC regulated power supplies
-
Trusted and widely used in electronics and embedded systems
In stock
Shipping & Delivery
Receipt from the place on the same day or shipping to nearby places
On the same day
6PM - 10 PM
Delivery through a fast shipping company intermediary
1-3 Days
Description
L7805CV Voltage Regulator – +5V, 1.5A Positive Voltage Regulator (TO-220)
The L7805CV is a popular fixed +5V linear voltage regulator from the 78xx series, capable of delivering up to 1.5A output current. It’s widely used in electronics to provide a stable +5V for microcontrollers, sensors, ICs, and other 5V-powered components. The regulator includes internal thermal shutdown, short-circuit protection, and safe-area compensation, ensuring dependable operation in various environments.
Packaged in a TO-220 form factor, it allows for easy mounting and heat dissipation via a heatsink when needed.
✅ Key Features:
-
Fixed +5V regulated output
-
Up to 1.5A output current
-
Thermal overload and short-circuit protection
-
Internal current limiting
-
Compatible with heatsinks (TO-220 package)
-
Low dropout voltage (~2V typical)
📐 Technical Specifications:
| Parameter | Value |
|---|---|
| Output Voltage | +5V (fixed) |
| Output Current | Up to 1.5A |
| Input Voltage Range | 7V to 35V |
| Dropout Voltage | ~2V |
| Load Regulation | ~50mV to 100mV |
| Line Regulation | ~50mV |
| Quiescent Current | 4–8mA |
| Operating Temperature | 0°C to +125°C |
| Package | TO-220 |
| Protection | Thermal shutdown, overcurrent |
⚙️ Applications:
-
Microcontroller power supplies (e.g. Arduino, PIC, AVR)
-
Sensor and module power regulation
-
DIY electronics and prototyping
-
Embedded systems
-
5V logic systems
-
Battery-powered devices with higher voltage sources
