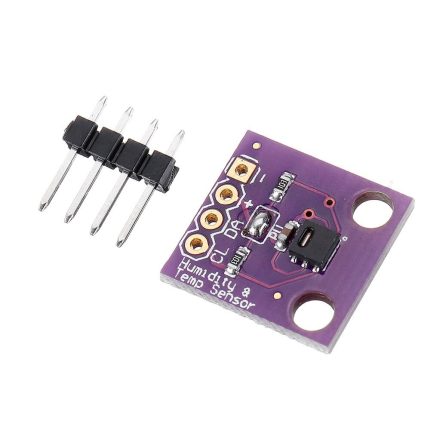

GY-213V HDC1080 Digital Humidity

The GY-213V HDC1080 Digital Humidity Sensor is a compact and highly accurate sensor designed to measure humidity levels in a wide range of applications. Utilizing the HDC1080 sensor chip, it provides reliable and precise humidity readings with minimal power consumption. This module is ideal for use in environmental monitoring, weather stations, and indoor climate control systems.

The GY-213V features a digital interface, which simplifies integration with microcontrollers and other digital systems. Its small form factor makes it suitable for embedded systems and space-constrained applications. With its high accuracy and ease of use, the GY-213V is an excellent choice for both hobbyists and professionals seeking to monitor and manage humidity levels effectively.

Specifications

• Sensor Chip: HDC1080
• Measurement Range: 0% to 100% Relative Humidity (RH)
• Humidity Accuracy: ±4% RH (typical), ±6% RH (maximum)
• Resolution: 14-bit (0.01% RH per bit)
• Power Supply: 3.3V to 5V DC
• Current Consumption:
  • Active Mode: 0.5 mA (typical)
  • Sleep Mode: < 1 µA
• Interface: I2C (Inter-Integrated Circuit)
• I2C Address: 0x40 (default)
• Operating Temperature Range: -40°C to +125°C (sensor range), -20°C to +60°C (typical operating range)
• Dimensions: Approximately 25mm x 20mm x 5mm
• Connector: 4-pin header (GND, VCC, SDA, SCL)
• Data Output: Digital (Humidity and Temperature data)
• Package Includes: GY-213V Module, Pin Header

Features

• High accuracy and stability for humidity measurement
• Low power consumption, suitable for battery-operated devices
• Easy integration with various microcontrollers via I2C interface
• Compact size for easy embedding in different applications
• Built-in temperature compensation for accurate humidity readings

This detailed description and specification should give you a clear understanding of the GY-213V HDC1080 Digital Humidity Sensor and its capabilities.
