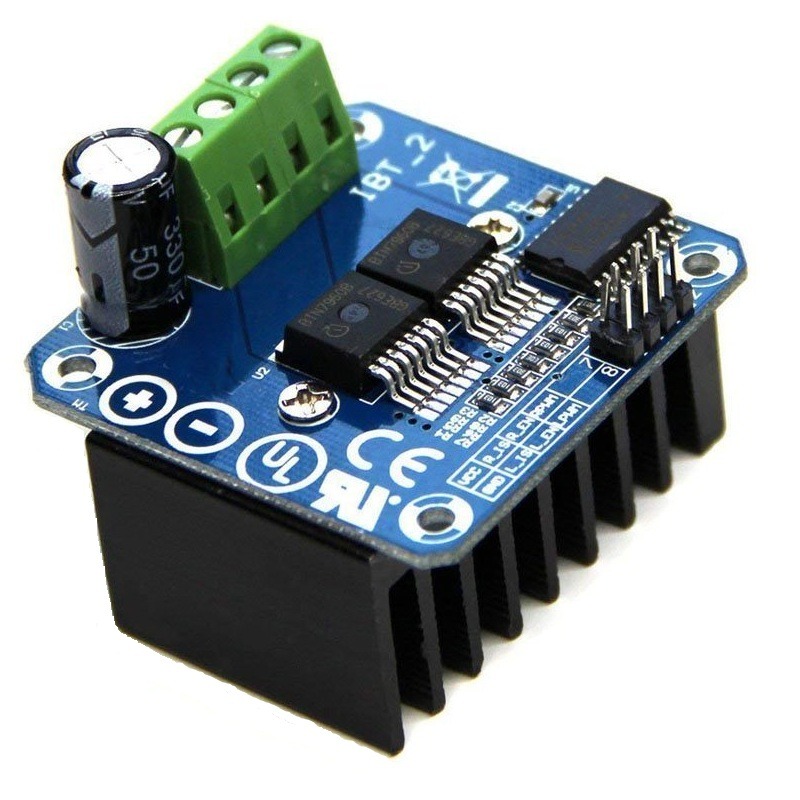

Double BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module
- Input voltage(V): 6 – 27.
- Maximum current(A): 43.
- Input level(V): 3.3 – 5.
- Duty cycle: 0 – 100%.
- Path resistance: 16 mΩ at 25°C.
- Low quiescent current: 7 µA at 25°C.
Original price was: EGP700.00.EGP525.00Current price is: EGP525.00.
Out of stock
The Double BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module is; a fully integrated high current H bridge for motor drive applications using the BTS7960 high current half bridge. the BTS7960 is part of the NovalithICTM family. This containing one p-channel high side MOSFET and one n-channel low side MOSFET; with an integrated driver IC in one package. Due to the p-channel high side switch; the need for a charge pump is eliminated thus minimizing EMI.
Interfacing to a microcontroller is made easy by the integrated driver IC which features logic level inputs; diagnosis with current sense, slew rate adjustment; dead time generation and protection against overtemperature, overvoltage, under voltage; overcurrent, and short circuit.
The Double BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module provides; a cost-optimized solution for protected high current PWM motor drives with very low board space consumption.
Features :
- PWM capability of up to 25 kHz combined with active freewheeling.
- Switched mode current limitation for reduced power dissipation in overcurrent.
- Status flag diagnosis with current sense capability.
- Overtemperature shut down with latch behavior.
- Overvoltage lockout.
- Undervoltage shut down.
- Driver circuit with logic level inputs.
- Adjustable slew rates for optimized EMI.
- 74AHC244 Schmitt-trigger Octal buffer/line driver for ESD protection (Inputs accepts voltages higher than VCC).
Input port:
- RPWM: forward level or PWM signal input, active high.
- LPWM: Reverse level or PWM signal input, active high.
- R_EN: forward drive enable input, high-level enable, low level off.
- L_EN: Reverse drive enable input, high-level enable, low level off.
- R_IS: forward drive current alarm output.
- L_IS: Reverse drive current alarm output.
- VCC: +5 V power output, 5V power supply connection with the microcontroller.
- GND: signal common low end.
Package Includes :
1 x Double BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module.
Get a discount when you buy more
Specification
Dimensions | 50 × 50 × 43 mm |
---|---|
Maximum current(A) |
43 |
Input level(V) |
3.3 – 5 |
Duty cycle |
0 – 100% |
Path resistance |
16 mΩ at 25°C. |
Operating Frequency(KHz) |
25 |
Low quiescent current |
7 µA at 25°C |
