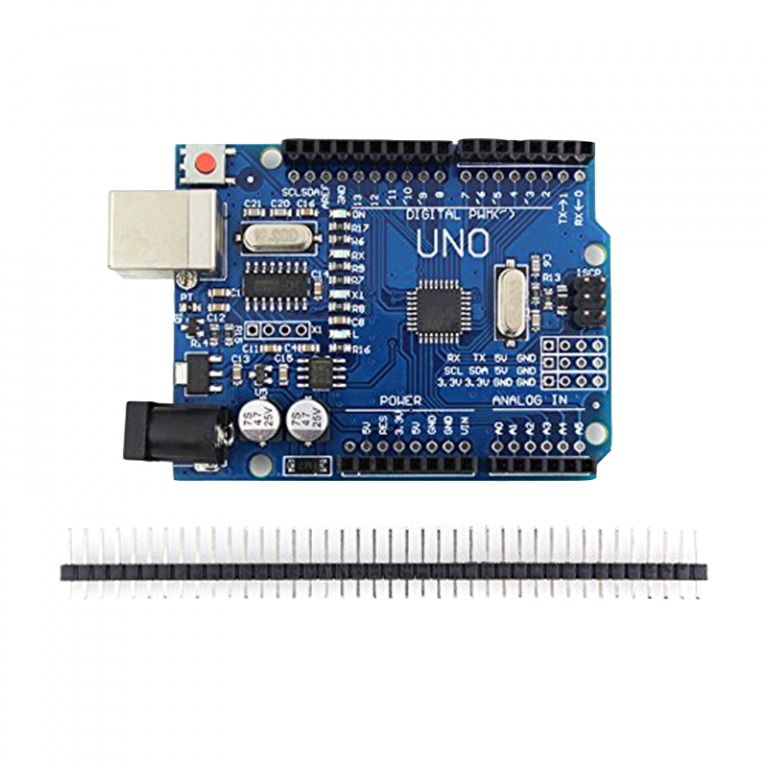

Arduino Uno R3 Clone
- Microcontroller: ATmega328p Arduino Uno
- Operating Voltage: 5V
- Input Voltage: 7–12V recommended (6–20V limit)
- Digital I/O Pins: 14 (6 with PWM)
- Analog Input Pins: 6
- Memory: 32KB Flash, 2KB SRAM, 1KB EEPROM
- Clock Speed: 16 MHz
- Max Current: 20mA per I/O pin, 50mA at 3.3V pin
- Dimensions: 68.6 x 53.4 mm | Weight: 25 g
- Connectivity: USB, ICSP pins, and reset button
Additional information
Arduino Uno is an ATmega328p based microcontroller board. It includes 14 digital input/output pins (6 of them with pwm output capacity), 6 analog input pins, 16MHz crystal, usb connection, power input, ICSP pins and a reset button. This board contains basically everything a microcontroller should contain.
You can feed the card with the USB connection of the computer or with an external power supply. You do not need to be afraid of making mistakes while working with this card. In case of making any mistake, you can replace the chip on it.
Since it is an original Arduino Uno product, it does not need to install any usb driver on the computer.
Technicial Specifications:
- Microcontroller Arduino Uno : ATmega328p
- Working voltage: 5v
- Input voltage(recommended): 7-12v
- Input voltage(limit): 6-20v
- Digital input/output pins: 14 pieces (6 of them with pwm output capacity)
- Pwm digital input/output: 6 pcs
- Analog input pin: 6 pcs
- Maximum current to each pin: 20mA
- 3.3v maximum current: 50mA
- Flash memory: 32KB(ATmega328p 0.5kb bootloader)
- Sram: 2KB (ATmega328P)
- EEPROM: 1KB(ATmega328P)
- Clock speed: 16MHz
- Length: 68.6mm
- Width: 53.4mm
- Weight: 25g
Additional information
| Weight | 30,0000 g |
|---|---|
| Dimensions | 4 × 6 × 10 mm |
| brand |
Arduino |
| Digital I/O Pins |
14 (of which 6 provide PWM output) |
| EEPROM |
1 KB (ATmega328) |
| Flash Memory |
32 KB |
| Input Voltage(Recommended) |
7-12V |
| Operating Voltage (VDC) |
5 |
| PWM Output Pins |
6 |
| SRAM |
2 |
| Weight | 30,0000 g |
|---|---|
| Dimensions | 4 × 6 × 10 mm |
| brand |
Arduino |
| Digital I/O Pins |
14 (of which 6 provide PWM output) |
| EEPROM |
1 KB (ATmega328) |
| Flash Memory |
32 KB |
| Input Voltage(Recommended) |
7-12V |
| Operating Voltage (VDC) |
5 |
| PWM Output Pins |
6 |
| SRAM |
2 |
