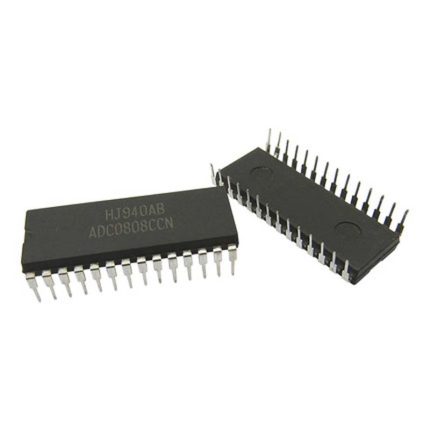

The ADC0808CCN PDIP-28 Analog to Digital Converter-ADC is a µP compatible Analog-to-digital Converter (ADC) with 8-channel multiplexer. The 8-bit A/D converter uses a successive approximation as the conversion technique. The converter features a high impedance chopper stabilized comparator, a 256R voltage divider with analog switch tree and a successive approximation register.
The 8-channel multiplexer can directly access any of 8-single-ended analog signals. The device eliminates the need for external zero and full-scale adjustments. Easy interfacing to microprocessors is provided by the latched and decoded multiplexer address inputs and latched TTL TRI-STATE outputs.
The design of the ADC0808 has been optimized by incorporating the most desirable aspects of several A/D conversion techniques. The ADC0808 offers high speed, high accuracy, minimal temperature dependence, excellent long-term accuracy and repeatability and consumes minimal power. These features make this device ideally suited to applications from a process.
Note: Image may vary from actual product in terms of Manufacturer/Brand name according to the availability.
Features:
- Easy interface to all microprocessors 8 Bits Resolution
- Total Unadjusted Error ±½ LSB and ±1 LSB
- Low Power: 15 mW
- Conversion Time: 100 μs
- Operates ratiometrically or with 5VDC or analog span adjusted voltage reference
- No zero or full-scale adjust required
- Green product and no Sb/Br
- Applications: Automation & Process Control, Signal Processing
Package Includes:
1 x ADC0808CCN PDIP-28 Analog to Digital Converter-ADC
