MPU9250 9-Axis Sensor Module – Gyroscope, Accelerometer, and Magnetometer for Robotics, and Wearable Devices

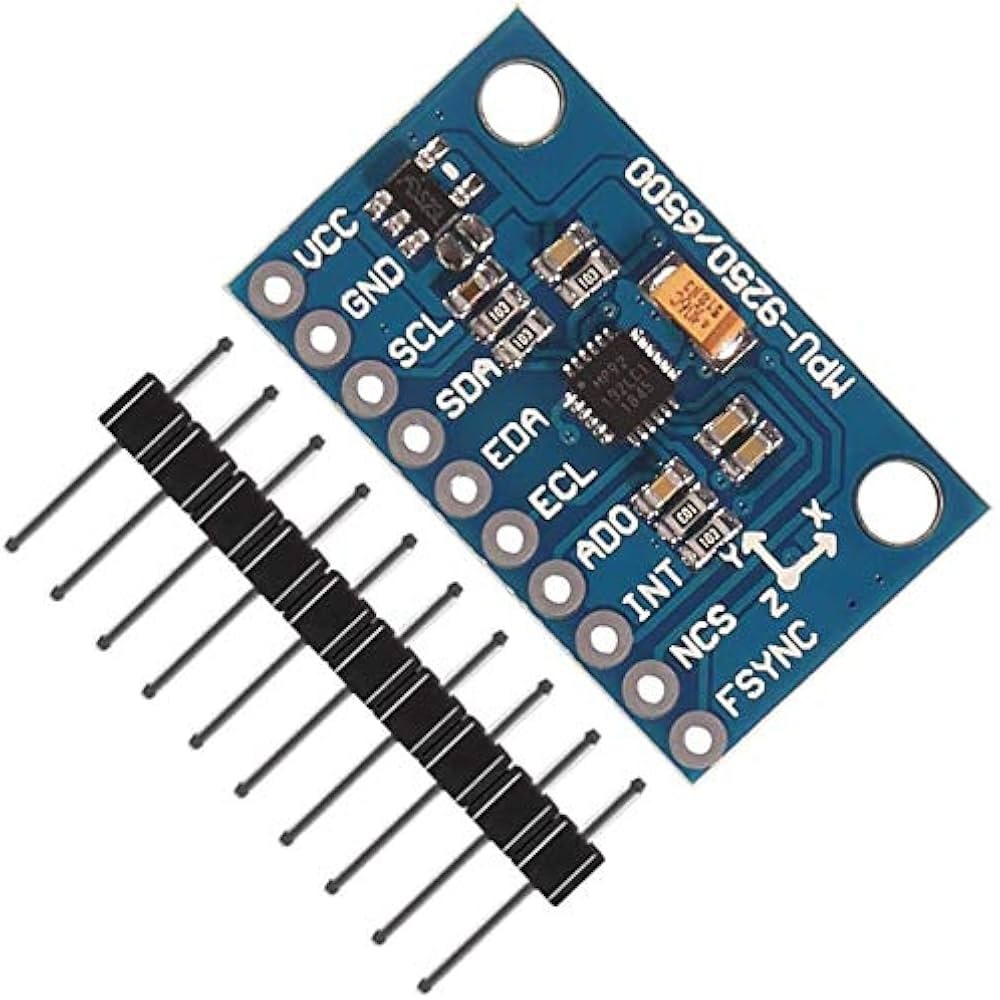

The MPU9250 9-Axis Sensor Module is a cutting-edge motion tracking device that integrates three key sensing elements: a 3-axis gyroscope, a 3-axis accelerometer, and a 3-axis magnetometer (compass). This combination makes it an essential tool for detecting and tracking motion, orientation, and magnetic fields in a wide range of applications, from robotics and drones to wearable technology.

Key Features and Specifications:

• 9-Axis Sensing: The MPU9250 offers a full 9-axis measurement system, allowing it to detect rotation (gyroscope), linear acceleration (accelerometer), and magnetic fields (magnetometer). This makes it perfect for applications that require precise attitude and heading reference systems (AHRS).

• High-Precision Measurement: The gyroscope provides rotational movement data with a configurable range of ±250°/s to ±2000°/s, while the accelerometer can measure accelerations from ±2g to ±16g. The magnetometer measures magnetic fields up to ±4800µT, ensuring accurate orientation data for navigation and positioning.

• I2C Interface: The MPU9250 communicates via the I2C protocol, making it easy to interface with a wide range of microcontrollers, including Arduino, Raspberry Pi, and other development platforms. This simplifies integration into projects requiring real-time motion and orientation data.

• Low Power Consumption: Ideal for battery-operated systems, the MPU9250 is designed for low power consumption, ensuring extended operational time in portable and wearable devices.

• Compact and Versatile: With its small size and robust design, the MPU9250 is well-suited for a variety of applications, including drones, robotics, gaming systems, navigation equipment, and health monitoring wearables.

Applications:

1. Robotics: The sensor module is critical for robotics, helping robots maintain balance, track movements, and understand their orientation in space. It’s a key component for autonomous navigation and control systems.

2. Drones and UAVs: Drones use the MPU9250 for stable flight, accurate positioning, and navigation, especially when GPS signals are weak or unavailable. It enables precise control of the drone’s attitude and heading.

3. Wearable Devices: The MPU9250 is used in wearable technology, including smartwatches, fitness trackers, and health monitoring devices. It provides motion tracking and helps monitor the user's movements and activities in real-time.

4. Virtual Reality and Gaming: For VR and gaming systems, the MPU9250 enhances user experience by providing immersive motion sensing and interaction, allowing for precise motion tracking and orientation detection.

5. Automotive and Navigation Systems: In vehicles and other navigation systems, the MPU9250 helps improve GPS accuracy and provides orientation data, ensuring reliable navigation even in challenging environments.

Specifications:

• Sensor Type: 9-Axis (3-Axis Gyroscope, 3-Axis Accelerometer, 3-Axis Magnetometer)

• Accelerometer Range:

  • ±2g, ±4g, ±8g, ±16g (programmable)

• Gyroscope Range:

  • ±250°/s, ±500°/s, ±1000°/s, ±2000°/s (programmable)

• Magnetometer Range:

  • ±4800µT

• Interface: I2C (Inter-Integrated Circuit)

• Operating Voltage: 3.3V to 5V

• Power Consumption: Low-power operation for extended battery life

• Output Data Rate (ODR): Configurable up to 1kHz

• Temperature Range: -40°C to +85°C

• Dimensions: Small, compact module suitable for easy integration

• Interface Pins: SDA, SCL, VCC, GND, INT

• Calibration: Factory-calibrated for accelerometer, gyroscope, and magnetometer

• Package: 10-pin or 12-pin module (depending on the specific variant)

Features:

• 3-Axis Gyroscope: Measures rotational velocity in 3 directions, allowing for accurate motion and orientation tracking.

• 3-Axis Accelerometer: Detects linear acceleration in three axes, making it perfect for detecting movement and tilt.

• 3-Axis Magnetometer (Compass): Provides magnetic field strength and direction, enabling accurate heading and orientation detection.

• I2C Interface: Simple and reliable communication with microcontrollers like Arduino, Raspberry Pi, and others.

• Programmable Sensitivity: Selectable sensitivity ranges for both the accelerometer and gyroscope, ensuring flexibility for various applications.

• Low Power Consumption: Designed for use in battery-operated and portable systems, offering energy efficiency without compromising performance.

• Compact Design: Small footprint, ideal for integration into space-constrained devices such as drones, wearable electronics, and robotics.

• Reliable Performance: High-accuracy sensor data with stable output and fast response times for real-time tracking.

• Ideal for Motion Tracking: Suitable for a variety of applications like robotics, drones, navigation systems, and wearables.

• Multi-Application Support: Perfect for use in autonomous vehicles, drones, fitness trackers, virtual reality systems, and gaming controllers.

Why Choose the MPU9250?

The MPU9250 is an ideal choice for developers and engineers looking for an integrated solution to motion tracking and orientation detection. Its combination of high precision, low power consumption, and flexible interfacing options makes it one of the most reliable sensors available for a variety of applications. Whether you are building a robot, drone, or wearable device, the MPU9250 offers the accuracy and performance needed to bring your project to life.

In summary, the MPU9250 9-Axis Sensor Module is an essential component for any project requiring advanced motion sensing and orientation capabilities, providing high-performance tracking data that is crucial for precise control and navigation in various devices.
