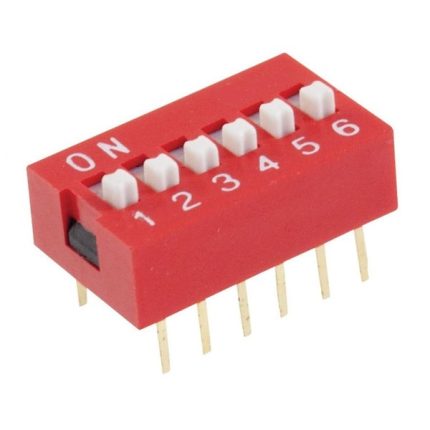

6 Position DIP Switch
8,00 EGP
In stock
- 6 individual ON/OFF toggle switches
- Standard 2.54mm (0.1″) pitch DIP layout
- Through-hole mounting design
- Voltage rating: 12–24V DC
- Current rating: 25–50mA
- Contact resistance ≤100Ω, insulation ≥100MΩ
- Ideal for device addressing, mode selection, and feature control
In stock
Shipping & Delivery
Receipt from the place on the same day or shipping to nearby places
On the same day
6PM - 10 PM
Delivery through a fast shipping company intermediary
1-3 Days
Description
6 Position DIP Switch – Dual In-line Package (DIP)
The 6 Position DIP Switch is a compact and reliable component designed for binary configuration and hardware setting selection in electronic circuits. Each of the six individual switches can be toggled between ON and OFF, allowing for multiple configuration combinations in a single compact package.
It features a standard 2.54mm (0.1 inch) pitch, making it compatible with most breadboards and PCBs. This DIP switch is ideal for setting device addresses, mode selections, and enabling or disabling features in microcontroller-based systems and digital circuits.
Key Features:
-
6 independent ON/OFF positions
-
Standard 2.54mm pitch for easy PCB mounting
-
Through-hole design for secure installation
-
Current rating: 25–50mA (typical)
-
Voltage rating: 12V–24V DC
-
Long mechanical life with reliable contact performance
-
Compact size, ideal for space-constrained applications
-
Commonly used in embedded systems, configuration jumpers, and control panels
Applications:
Perfect for microcontroller settings, device ID selection, logic control, and feature toggling in electronic projects.
Customer Reviews
Specification
Overview
| Weight Weight | 0,0000 g |
|---|
