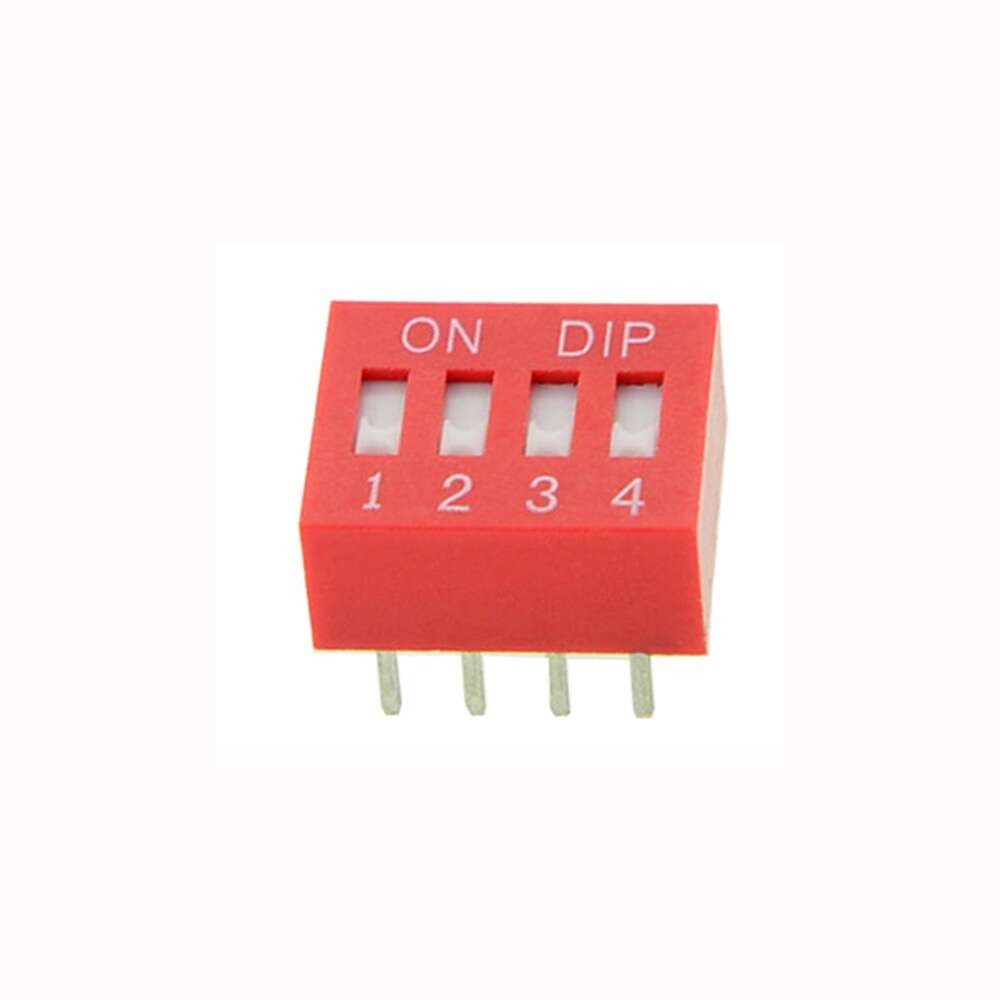

4 Position DIP Switch

EGP9.00

In stock

Estimated delivery dates: 03-12-2024 - 05-12-2024

The 4-Position DIP Switch is a small, manual switch used for setting configurations and options in electronic devices. It features four individual switches that can be turned ON or OFF, offering a simple and reliable way to customize settings or select between different operating modes. DIP (Dual In-line Package) switches are commonly used in embedded systems, robotics, and electronic projects where space is limited, and mechanical switches are needed for configuration purposes.

Key Features:

  • 4 Positions: Offers four distinct switches that can each be set to either the ON or OFF position, allowing for 16 possible configuration combinations.
  • Compact Size: Designed for small-scale electronics and tight spaces, making it ideal for integration into circuit boards and systems with limited room.
  • Reliable Manual Control: Provides a straightforward method for adjusting settings without needing complex software or digital controls.
  • Easy to Use: Simple toggle switches that can be easily changed by hand, no special tools or equipment required.
  • Durable Design: Made from durable plastic and metal contacts, ensuring long-term use without failure.

Specifications:

  • Number of Positions: 4 (4 individual switches in a single package).
  • Switch Type: Toggle (can be set to ON or OFF).
  • Contact Resistance: Typically ≤ 100Ω (ensures low power loss and stable operation).
  • Voltage Rating: 24V DC (maximum).
  • Current Rating: 0.1A to 1A (depending on model, ideal for low-power control applications).
  • Dimensions: Generally compact, with typical dimensions around 0.7 x 1.5 x 0.25 inches (18mm x 38mm x 6mm).
  • Mounting: Designed for through-hole or surface-mount installation on a circuit board.

Applications:

  • Configurable Settings: Used in devices and circuits where multiple settings or modes need to be selected manually (e.g., addressing, device configuration, etc.).
  • Embedded Systems: Ideal for microcontroller-based projects and systems requiring manual adjustments of system parameters or modes.
  • Robotics: Frequently used to set parameters such as motor speed, direction, or operation modes in robotic systems.
  • DIY Electronics: Commonly found in hobbyist and DIY projects that require simple, adjustable switches for different configurations.
  • Testing & Debugging: Helpful in development and testing environments for quickly changing settings during experimentation.

Benefits:

  • Simple and Reliable: Provides a straightforward, mechanical solution for selecting options, which doesn’t rely on digital control systems.
  • Cost-Effective: Low-cost solution for controlling multiple settings without complex components.
  • Space-Saving: Perfect for projects where space is at a premium and where you need to manually adjust settings without using larger switches or jumpers.
  • Versatile: Can be used in a wide range of applications, from robotics and electronics to testing and configuration in various devices.

The 4-Position DIP Switch is a practical, easy-to-use component that offers manual configuration in a variety of electronic applications. Whether you’re building a robot, setting up a custom circuit, or debugging a device, this small and reliable switch provides a simple way to manage multiple settings with ease.
