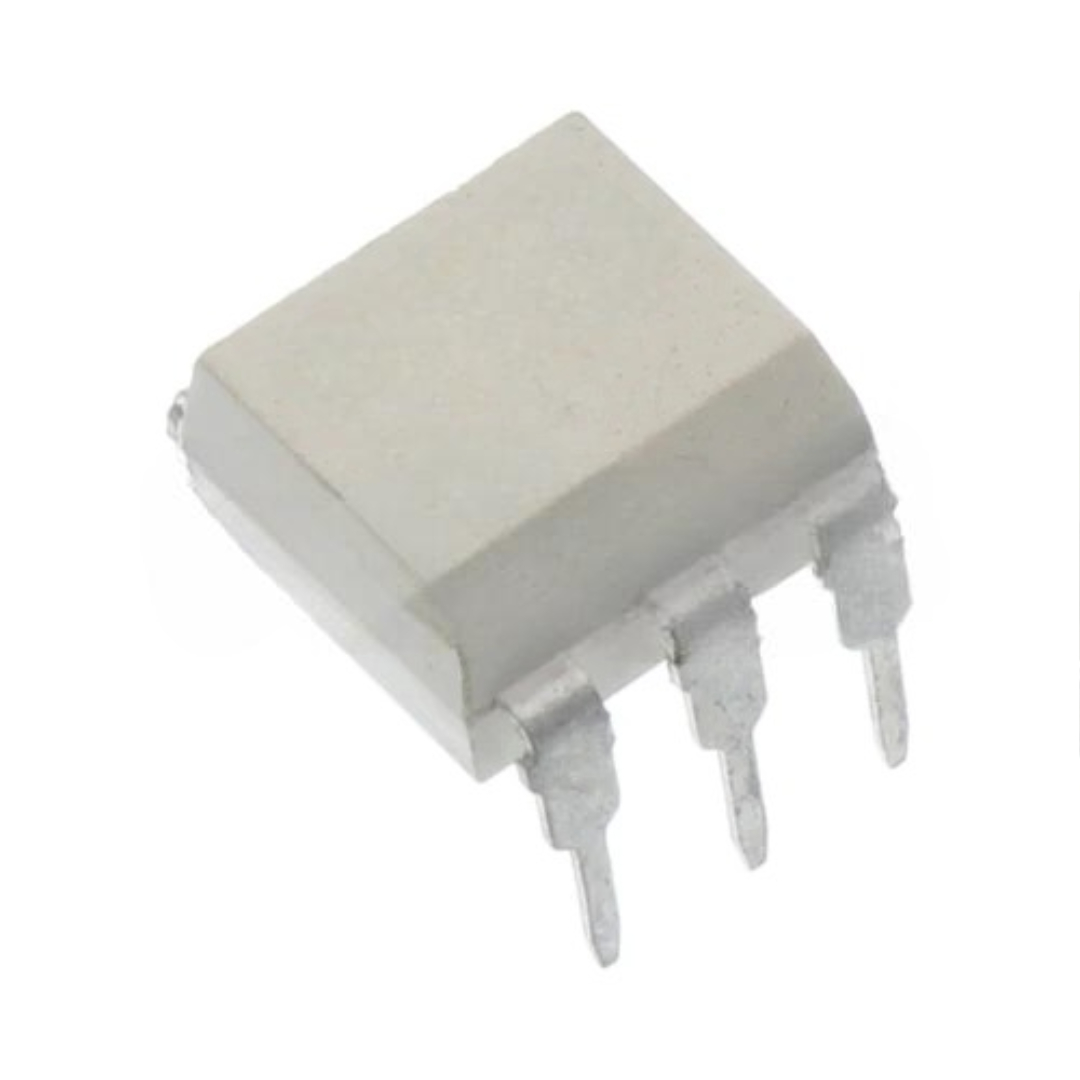

4N26 Optocouplers – Phototransistor Output DIP-6
10,00 EGP
17
People watching this product now!
Payment Methods:
Description
Specification
General
| WeightWeight | 0,00 g |
|---|---|
| Product Type | Optocoupler / Optoisolator |
| Model | 4N26 |
| Output Type | Phototransistor |
| Isolation Voltage (Viso) | 5000 Vrms (typical) |
| Input Type | Infrared LED |
| Forward Voltage (VF) | 1.2 V (typical @ IF=10 mA) |
| Forward Current (IF) | 10 mA (recommended) • Max 60 mA (typical) |
| Current Transfer Ratio (CTR) | 20% – 100% (typical @ IF=10 mA, VCE=10 V) |
| Collector-Emitter Voltage (VCEO) | 30 V (typical) |
| Collector Current (IC) | 50 mA (max typical) |
| VCE Saturation | 0.2 V (typical) |
| Rise/Fall Time | ~2–5 µs (typical, series dependent) |
| Package | DIP-6 (Through-Hole) |
| Pin Count | 6 |
| Operating Temperature | -55°C to +100°C (typical) |
| Applications | Signal isolation, level shifting, noise suppression, MCU interfacing |
