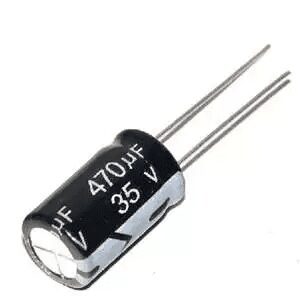

470uF 35V Radial Electrolytic Capacitor

The 470µF 35V Radial Electrolytic Capacitor is a high-quality, polarized electrolytic capacitor designed for use in various electronic circuits. It has a capacitance of 470 microfarads (µF) and a voltage rating of 35 volts (V), making it suitable for applications in power supplies, filtering, and energy storage. The radial lead configuration allows for easy installation onto printed circuit boards (PCBs), making it ideal for both commercial and DIY electronics projects.

Electrolytic capacitors are known for their high capacitance values and are commonly used in DC circuits, power supplies, audio systems, and other electronic devices that require efficient energy storage and filtering. The 470µF 35V capacitor is designed to provide reliable performance, low ESR (Equivalent Series Resistance), and high capacitance in a compact form factor.

Key Features:

• Capacitance Value: 470µF (microfarads), providing high energy storage and efficient filtering.
• Voltage Rating: 35V (maximum voltage the capacitor can safely withstand).
• Radial Lead Design: Two leads extend from one end of the capacitor, making it easy to mount on PCBs.
• Polarized Capacitor: This capacitor is polarized, meaning it must be installed in the correct orientation in the circuit.
• Durable Construction: Designed to withstand typical environmental conditions, offering long-lasting and stable performance.
• High Capacitance for Filtering: Ideal for power supply filtering and decoupling applications, providing smooth voltage output.

Specifications:

• Capacitance: 470µF (microfarads)
• Voltage Rating: 35V (maximum working voltage)
• Tolerance: Typically ±20% (meaning the capacitance can vary within 20% of the nominal value)
• ESR (Equivalent Series Resistance): Low ESR, suitable for high-frequency applications.
• Leakage Current: Low leakage current at rated voltage.
• Type: Radial Electrolytic Capacitor
• Size: Diameter typically around 10mm-12mm and height around 20mm-25mm (varies based on the manufacturer).
• Mounting Type: Radial leads for through-hole mounting.
• Operating Temperature Range: Typically -40°C to +85°C or -40°C to +105°C for extended temperature versions.
• Lifespan: Designed for extended operational life (often up to 1000 hours or more at rated temperature).

Applications:

• Power Supply Filtering: Used to smooth out fluctuations in power supplies and ensure stable DC voltage.
• Decoupling: Ideal for decoupling applications in digital circuits, reducing voltage noise and improving performance.
• Energy Storage: Often used in circuits that require temporary energy storage and quick discharge (such as in power circuits or signal processing).
• Audio Equipment: Used in audio systems for power supply filtering to reduce hum and noise.
• Voltage Regulation: Helps in stabilizing the output voltage in voltage regulation systems.
• Switching Circuits: Can be used in switching regulators and inverters where high capacitance is needed for energy storage and filtering.
