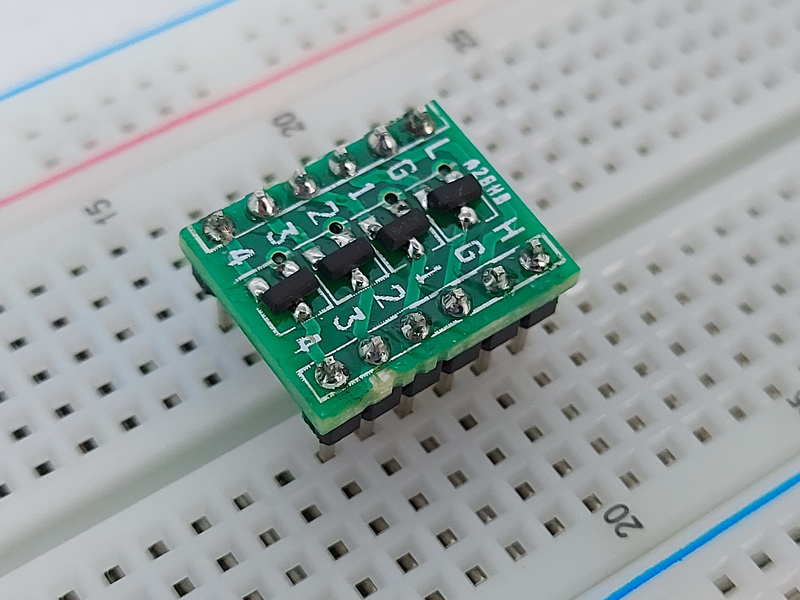

The 4-Channel Bi-Directional Logic Level Converter is a compact and efficient module designed to safely interface devices operating at different logic voltage levels. It enables bi-directional communication between low-voltage logic (such as 1.8V, 3.3V) and higher-voltage logic (such as 5V), making it ideal for microcontrollers, sensors, and communication buses like I²C, SPI, UART, and GPIO.
Key Features
-
4 Independent Bi-Directional Channels
Supports simultaneous two-way signal conversion on four lines. -
Wide Voltage Compatibility
Works with low-voltage logic from 1.8V–3.3V and high-voltage logic up to 5V. -
Automatic Direction Sensing
No direction control pin required. -
Compact Breadboard-Friendly Design
Easy to plug into standard breadboards and prototyping boards. -
MOSFET-Based Level Shifting
Ensures reliable signal translation with minimal delay.
Specifications
-
Module Type: Logic Level Converter
-
Channels: 4 (Bi-Directional)
-
Low-Voltage Side (LV): 1.8V – 3.3V
-
High-Voltage Side (HV): Up to 5V
-
Logic Type: CMOS / TTL Compatible
-
Conversion Method: MOSFET-Based
-
Pin Labels: LV1–LV4, HV1–HV4, LV, HV, GND
-
Operating Frequency: Up to ~10 MHz (depends on application)
-
PCB Size: Mini Module (Breadboard Compatible)
-
Applications: Arduino, Raspberry Pi, ESP32, I²C, SPI, UART, sensors, GPIO interfacing
