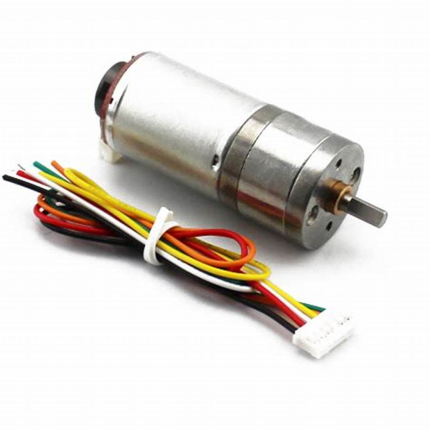

25GA370 DC Gear Motor with Encoder is a compact, high-torque motor designed for robotics and automation. It combines a 25mm gearbox with a 370-size DC motor and a built-in encoder for speed/position feedback. With 200RPM at 12VDC, it’s ideal for smart robots, line followers, AGV projects, and precise motion control applications.
Key Features
-
Rated Voltage: 12V DC
-
Speed: 200 RPM (gearbox output)
-
Gearbox Size: 25mm (25GA)
-
Motor Type: GA370 geared DC motor
-
Built-in Encoder: for speed measurement and position/counting feedback
-
High torque output compared to non-geared motors
-
Low noise & stable performance for continuous operation
-
Suitable for PWM speed control and closed-loop control systems
Detailed Specifications
Electrical
-
Operating Voltage: 12V DC
-
Control Method: PWM speed control (recommended)
-
Encoder Output: Quadrature pulses (A/B) on most versions (module-dependent)
-
Direction Control: Using H-Bridge motor driver (L298N, TB6612FNG, BTS7960, etc.)
Mechanical
-
Output Speed: 200RPM (at 12V, typical)
-
Gearbox Type: Metal gear reduction gearbox
-
Gearbox Diameter: 25mm
-
Motor Core: 370-size brushed DC motor
-
Output Shaft: D-shaft / round shaft (varies by version)
-
Mounting: Standard 25GA mounting holes/bracket compatible
Performance (Typical Use)
-
Designed for high torque and stable low-speed running
-
Encoder allows accurate:
-
Speed (RPM) monitoring
-
Distance measurement (wheel encoder)
-
Position tracking (counts)
-
Applications
-
Two-wheel / four-wheel robot cars
-
Line follower and obstacle avoidance robots
-
Smart AGV / mobile robot platforms
-
DIY CNC / linear motion systems (light duty)
-
Automation projects requiring feedback control
-
Speed-controlled conveyors and mechanisms
Used In
-
Arduino / ESP32 / STM32 robotics projects
-
ROS robot platforms (wheel odometry)
-
PID speed control systems
-
Encoder-based distance and navigation builds
Package Includes
-
1× 25GA370 DC Gear Motor with Encoder – 12V – 200RPM
