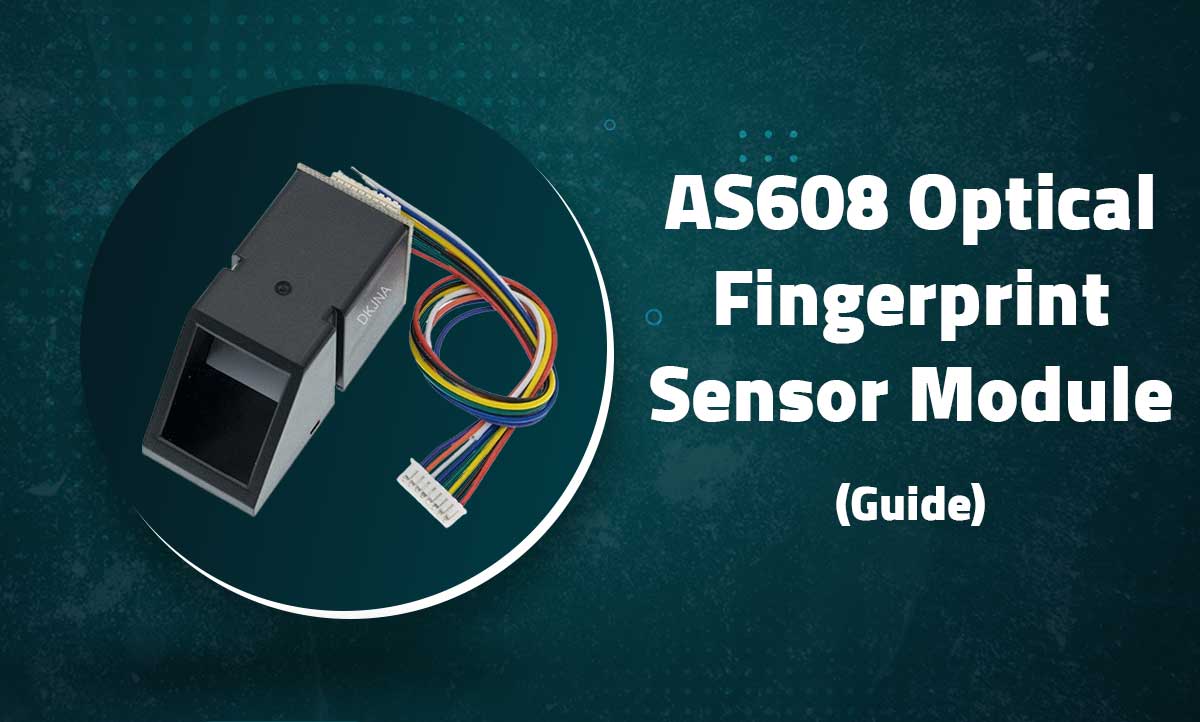

AS608 Optical Fingerprint Sensor Module
AS608 Optical Fingerprint Sensor Module
High-Precision Biometric Recognition for Arduino and Microcontroller Projects
Introduction
The AS608 is an advanced optical fingerprint sensor capable of storing up to 1,000 fingerprints with 0.001% false acceptance rate. Ideal for security systems, attendance trackers, and access control applications.
Key Features
High Accuracy
500 DPI optical resolution
Large Capacity
Stores up to 1,000 fingerprints
Fast Matching
<1 second recognition time
UART Interface
3.3V-5V TTL serial communication
Technical Specifications
| Sensor Type | Optical |
|---|---|
| Resolution | 500 DPI |
| Fingerprint Capacity | 1,000 templates |
| False Acceptance Rate | 0.001% |
| Interface | UART (TTL) |
| Operating Voltage | 3.3V – 5V DC |
| Current Draw | 120mA max during imaging |
| Dimensions | 56mm × 20mm × 21mm |
Pin Configuration
| Pin | Function | Arduino Connection |
|---|---|---|
| 1 (VCC) | Power (3.3V-5V) | 5V |
| 2 (GND) | Ground | GND |
| 3 (TX) | Serial Transmit | RX (D0) |
| 4 (RX) | Serial Receive | TX (D1) |
| 5 (Touch) | Finger detection | Any digital pin |
Note: For Arduino Uno, use SoftwareSerial for additional serial ports
Wiring with Arduino
|
1 2 3 4 5 6 |
// Basic Connections: // VCC → 5V // GND → GND // TX → Arduino RX (D0) // RX → Arduino TX (D1) // Touch → D2 (optional) |
Library Setup
- Install the Adafruit Fingerprint Sensor Library
- Include the required libraries:
12#include <Adafruit_Fingerprint.h>#include <SoftwareSerial.h> - Initialize the sensor:
|
1 2 3 4 5 6 7 |
SoftwareSerial mySerial(10, 11); // RX, TX Adafruit_Fingerprint finger = Adafruit_Fingerprint(&mySerial); void setup() { Serial.begin(9600); finger.begin(57600); } |
Basic Fingerprint Enrollment
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 |
void enrollFingerprint(int id) { int p = -1; Serial.print("Waiting for valid finger to enroll #"); Serial.println(id); while (p != FINGERPRINT_OK) { p = finger.getImage(); if (p == FINGERPRINT_OK) { Serial.println("Image taken"); } else { Serial.println("Error"); } } p = finger.image2Tz(1); if (p == FINGERPRINT_OK) { Serial.println("Image converted"); } else { Serial.println("Error"); return; } Serial.println("Remove finger"); delay(2000); p = 0; while (p != FINGERPRINT_NOFINGER) { p = finger.getImage(); } Serial.println("Place same finger again"); p = -1; while (p != FINGERPRINT_OK) { p = finger.getImage(); } p = finger.image2Tz(2); if (p == FINGERPRINT_OK) { Serial.println("Image converted"); } else { Serial.println("Error"); return; } p = finger.createModel(); if (p == FINGERPRINT_OK) { Serial.println("Prints matched!"); } else { Serial.println("Error"); return; } p = finger.storeModel(id); if (p == FINGERPRINT_OK) { Serial.println("Stored!"); } else { Serial.println("Error"); } } |
Fingerprint Verification
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 |
int getFingerprintID() { int p = finger.getImage(); if (p != FINGERPRINT_OK) return -1; p = finger.image2Tz(); if (p != FINGERPRINT_OK) return -1; p = finger.fingerFastSearch(); if (p != FINGERPRINT_OK) return -1; Serial.print("Found ID #"); Serial.print(finger.fingerID); Serial.print(" with confidence "); Serial.println(finger.confidence); return finger.fingerID; } |
Troubleshooting
No Serial Communication
- Verify TX/RX connections are crossed
- Check baud rate settings (default 57600)
- Ensure proper power supply
Poor Image Quality
- Clean sensor surface with microfiber cloth
- Ensure finger covers entire sensing area
- Apply consistent finger pressure
False Rejections
- Re-enroll fingerprints in different conditions
- Adjust confidence threshold in code
- Try different finger positions during enrollment
