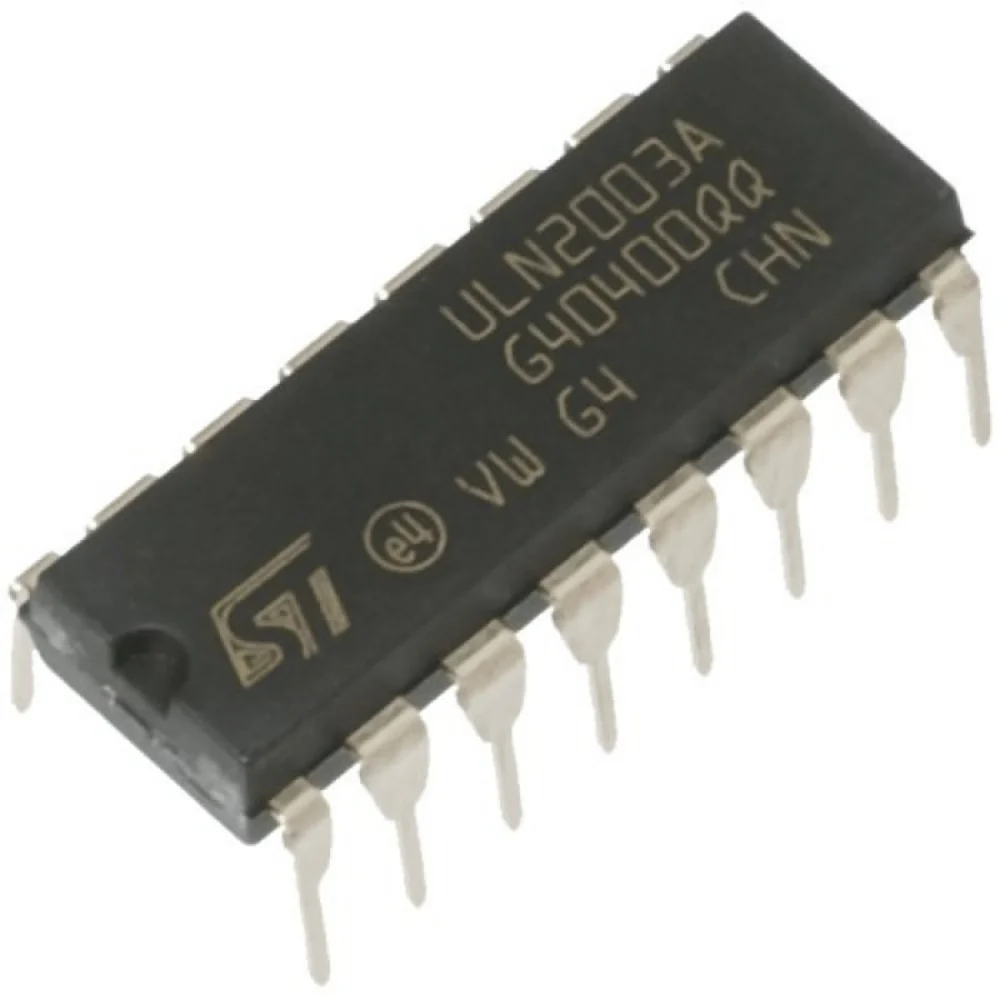

ULN2003 Seven Darlington Array DIP-16

The ULN2003 Seven Darlington Array DIP-16 is an integrated circuit (IC) designed for driving high-power loads such as relays, motors, and other inductive devices. It features seven Darlington transistor pairs and is commonly used in microcontroller-based applications for controlling multiple devices. The DIP-16 (Dual Inline Package) form factor allows easy integration into standard circuit boards, making it ideal for both prototyping and production environments. With the ability to handle higher current loads (up to 500mA per channel), the ULN2003 offers reliable switching and driving capabilities in automation, robotics, and other control systems.

Key Features:

• Seven Darlington Pairs: Allows for multiple outputs with a single IC, making it efficient for driving multiple devices simultaneously.
• High Current Drive Capability: Capable of driving up to 500mA per channel with 50V of output voltage, suitable for controlling relays, motors, and lamps.
• Common Cathode Output: Designed with open-collector Darlington transistor outputs for reliable switching of inductive loads.
• Flyback Diodes Included: Integrated diodes for back EMF protection when switching inductive loads, ensuring safety and reliability.
• DIP-16 Package: The DIP-16 package offers easy integration with standard breadboards and PCBs.
• Low Saturation Voltage: Provides efficient switching with low power loss in output transistors.
• Compatible with Logic Circuits: Can be easily interfaced with logic-level signals (5V or 3.3V) from microcontrollers and other digital control devices.

Specifications:

• IC Type: Darlington Array (7-channel)
• Package Type: DIP-16 (Dual Inline Package, 16 pins)
• Input Voltage: Typically 5V to 30V
• Output Voltage: Up to 50V
• Output Current: 500mA per channel (max)
• Total Current Rating: 2.5A (total for all channels)
• Saturation Voltage: 1.1V (max at 500mA)
• Power Dissipation: Typically 2W (depends on usage)
• Protection Diodes: Built-in flyback diodes for protection against inductive load spikes
• Operating Temperature Range: -40°C to +85°C (typical for industrial applications)
• Mounting Type: Through-hole (standard for DIP packages)

Applications:

• Microcontroller Interface: Used in projects where a microcontroller needs to drive higher current loads such as motors, solenoids, and relays.
• Relay Control: Suitable for controlling relays in control systems, automating processes in robotics, home automation, or industrial equipment.
• Motor Control: Ideal for driving motors in various automation or robotics applications where multiple motors need to be controlled with a single IC.
• Lighting Control: Can be used for controlling high-power lighting systems, such as in smart lighting applications or large-scale lighting automation.
• Automation Systems: Commonly used in industrial automation systems for controlling actuators, relays, and other power devices.

How it Works:

The ULN2003 IC consists of seven Darlington transistor pairs, each capable of switching 500mA of current. The inputs are designed to be controlled by low-voltage logic signals, typically from a microcontroller or logic circuit. When a signal is applied to the input pin, the corresponding Darlington pair turns on and allows current to flow through the output pin. The built-in flyback diodes protect the IC from voltage spikes generated by inductive loads such as motors and relays.

The ULN2003 is a highly reliable solution for switching high-power loads with low-voltage control signals, making it a valuable component in numerous automation, robotics, and control systems.
