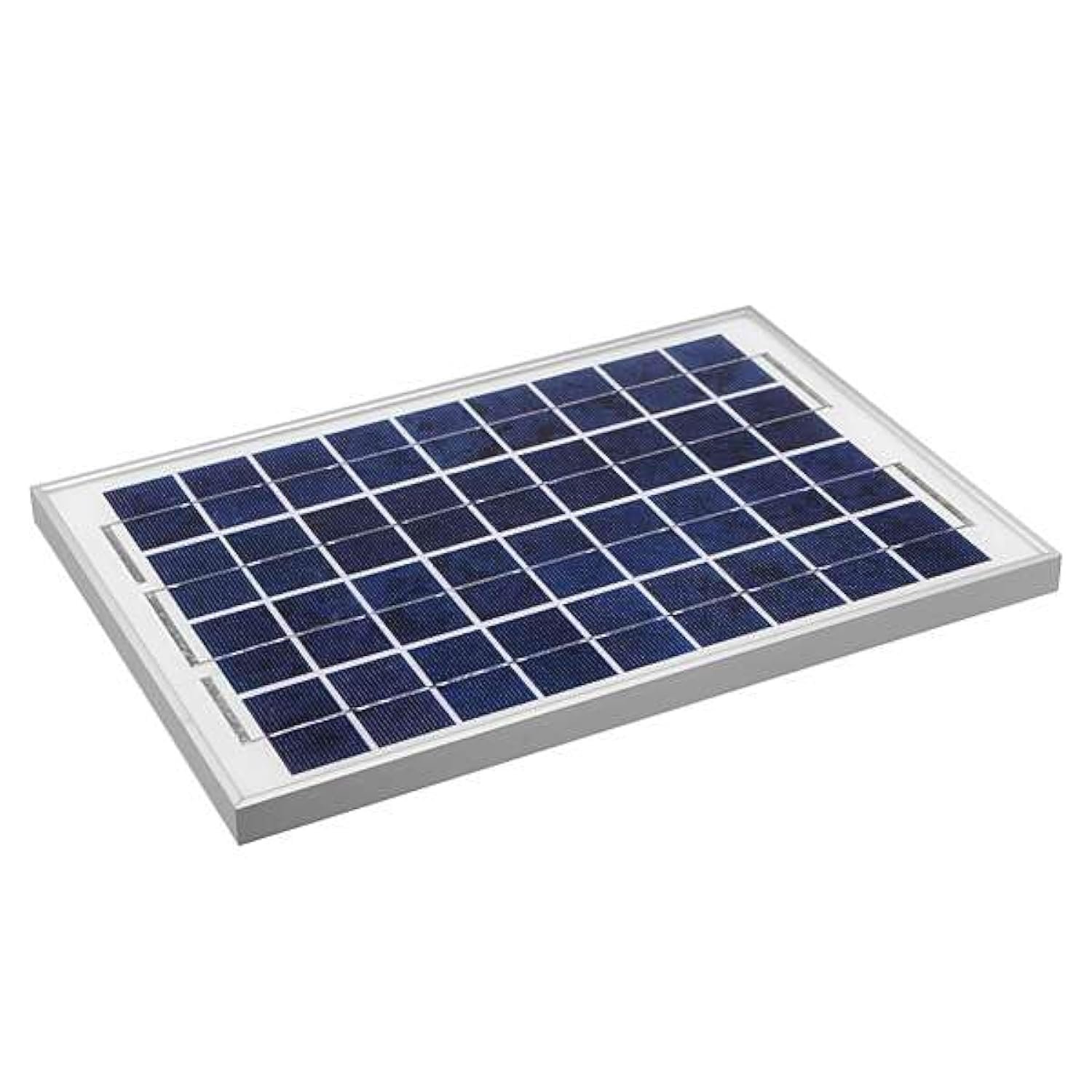

Solar Cell Panel – 18V 5W Polycrystalline
- 18V Output Voltage suitable for small electronics and charging
- 5W Power Rating for efficient energy conversion
- Polycrystalline Silicon for durability and stable performance
- Compact and Lightweight for portable solar applications
- Ideal for DIY Solar Projects, Lighting, and Battery Charging
325,00 EGP
In stock
In stock
Payment Methods:
Description
This 18V 5W Polycrystalline Solar Panel is a compact and efficient power source ideal for DIY solar projects, battery charging, LED lighting, and off-grid systems. Built with durable materials and polycrystalline cells, it offers reliable performance in a wide range of outdoor conditions.
✅ Key Features:
-
18V output, 5W power capacity
-
Polycrystalline solar cells for good efficiency and cost-effectiveness
-
Compact and lightweight – great for portable and small-scale projects
-
Weather-resistant design for outdoor use
-
Suitable for charging 12V batteries with a charge controller
Specifications:
| Feature | Details |
|---|---|
| Type | Polycrystalline Solar Panel |
| Maximum Power (Pmax) | 5W |
| Voltage at Pmax (Vmp) | 18V |
| Current at Pmax (Imp) | ~0.28A |
| Open Circuit Voltage (Voc) | ~21.5V |
| Short Circuit Current (Isc) | ~0.32A |
| Dimensions | Approx. 260mm x 170mm x 3mm |
| Material | Polycrystalline cells, glass front |
| Frame | Epoxy or plastic backing (depending on model) |
| Applications | Battery charging, lighting, outdoor electronics, solar kits |
Specification
General
| Weight Weight | 0,0000 g |
|---|---|
| Product Name |
Solar Cell Panel – 18V 5W Polycrystalline |
| Type |
Polycrystalline Solar Panel |
| Output Voltage |
18V DC |
| Maximum Power |
5W |
| Maximum Current |
Approx. 0.28A |
| Open-Circuit Voltage (Voc) |
~21V |
| Short-Circuit Current (Isc) |
~0.30A |
| Material |
Polycrystalline silicon |
| Dimensions |
Approx. 150 × 130 × 3 mm (varies by manufacturer) |
| Weight |
~200 g |
| Working Temperature |
-20°C to +70°C |
| Frame |
None (bare panel) / Optional plastic frame |
