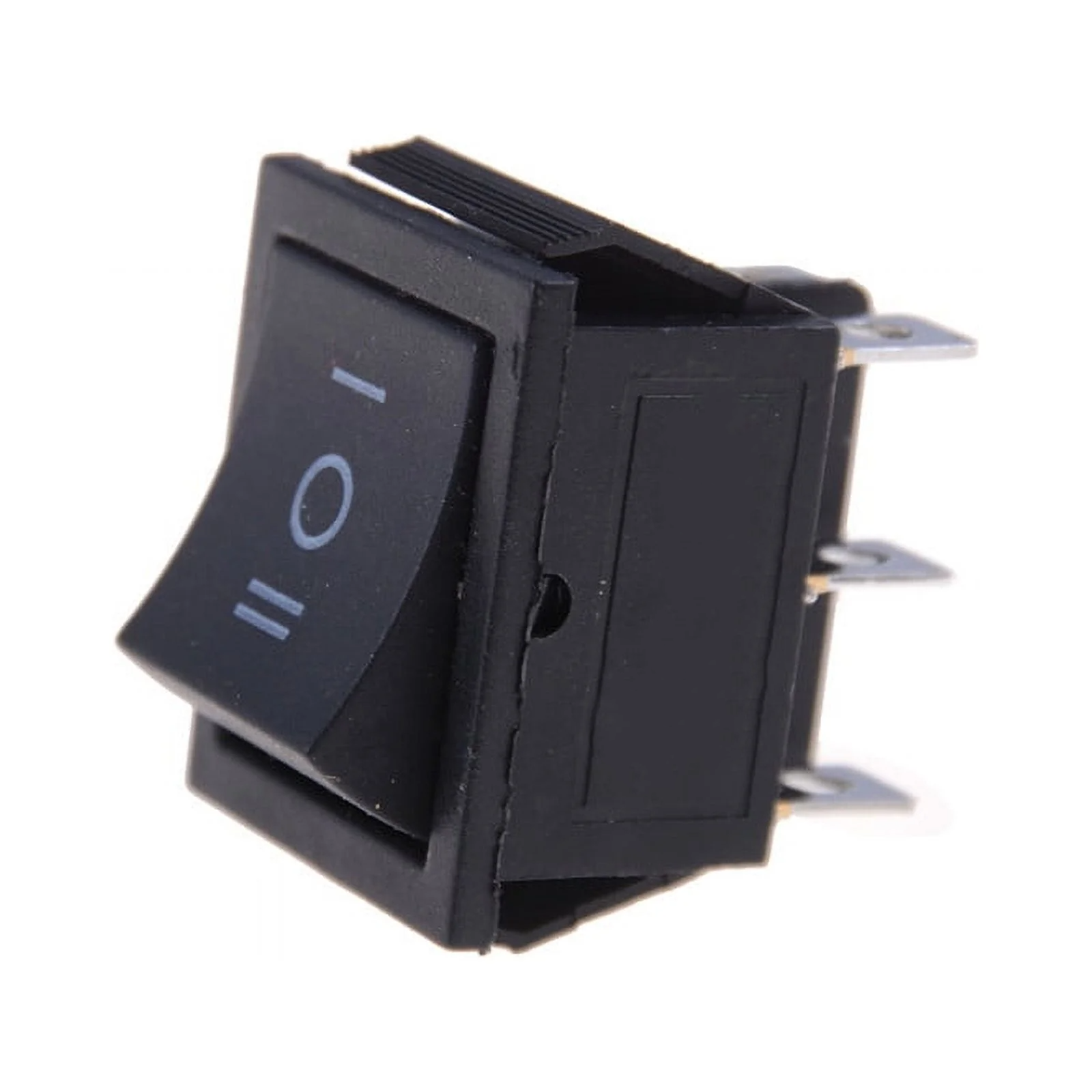

Rocker Switch On-Off-On 16A 250VAC KCD4 6 Pin Dim: 25x21mm

The Rocker Switch On-Off-On 16A 250VAC KCD4 6 Pin is a high-quality, durable switch designed for controlling electrical circuits with ease. This On-Off-On switch configuration allows for toggling between two operational modes, making it ideal for a wide range of applications such as home appliances, industrial equipment, and lighting systems. With a 16A current rating and a 250VAC voltage rating, it can handle high-power circuits, offering reliable performance even in demanding environments.

The KCD4 model is designed for ease of installation and use, featuring a compact 25mm x 21mm size, making it ideal for integration into various control panels and electrical systems. Whether you’re working on DIY projects, industrial applications, or appliance repairs, this rocker switch provides a convenient and safe solution for controlling power to your devices.

Key Features:

• On-Off-On Functionality: This switch offers three positions: On, Off, and On, allowing for toggling between two operational states.
• High Current Rating: Supports up to 16A at 250VAC, making it suitable for use with high-power appliances and electrical equipment.
• Durable and Reliable: Built to withstand long-term use in both residential and industrial settings, with high-quality materials that ensure longevity.
• Compact Size: 25mm x 21mm dimensions, making it a perfect fit for tight spaces and control panels.
• 6 Pins for Easy Wiring: The 6-pin design allows for easy connection and installation in a variety of electrical systems.
• Safe Operation: The switch is designed to meet safety standards, ensuring reliable operation without risk of malfunction.
• Versatile Application: Ideal for use in control panels, home appliances, machinery, and more.

Specifications:

• Switch Type: Rocker switch with On-Off-On functionality
• Current Rating: 16A (max)
• Voltage Rating: 250VAC
• Pin Count: 6 pins for versatile wiring and connections
• Switch Positions: 3 positions: On → Off → On
• Dimensions: 25mm (width) x 21mm (height)
• Mounting Type: Panel mount (fits standard cutouts for rocker switches)
• Material: Typically made of plastic housing with a metallic switch mechanism
• Contact Type: SPDT (Single Pole Double Throw) or DPDT (Double Pole Double Throw) depending on specific model
• Operating Temperature: Typically between -20°C to +85°C (depending on the manufacturer)
• Certifications: CE, UL, or other relevant certifications (based on the model)

Applications:

• Home Appliances: Ideal for controlling power to household devices like lamps, fans, and other electrical appliances.
• Industrial Equipment: Used in control panels for machinery, where switching between different power states or modes is necessary.
• Lighting Systems: Perfect for controlling lights with an On/Off/On functionality, such as in multi-position lighting circuits.
• Automotive Applications: Can be used in vehicles for switching electrical systems, including accessories or auxiliary power circuits.
• DIY Projects: A great choice for hobbyists or DIYers who need a reliable switch for custom electrical projects or repairs.

How it Works:

The KCD4 Rocker Switch operates by toggling between three positions: On, Off, and On. In each position, the internal contacts of the switch either complete or break the circuit. When in the On position, the switch allows electrical current to flow to the connected device, powering it. When in the Off position, the circuit is open, and no current flows. The On-Off-On design allows the user to select between two different circuits or states, providing versatility in control systems.

Installation Notes:

• Wiring: The 6 pins are typically used for easy connection to various parts of a circuit. Be sure to properly wire according to the device’s operational needs, as each pin may correspond to different parts of the circuit (e.g., common, normally open, or normally closed contacts).
• Panel Mounting: Ensure the panel cutout matches the switch dimensions (25mm x 21mm) for a secure and snug fit.

The Rocker Switch On-Off-On 16A 250VAC KCD4 6 Pin is a reliable and easy-to-use switch suitable for a variety of high-power applications, offering safety, durability, and versatility in both industrial and residential settings.
