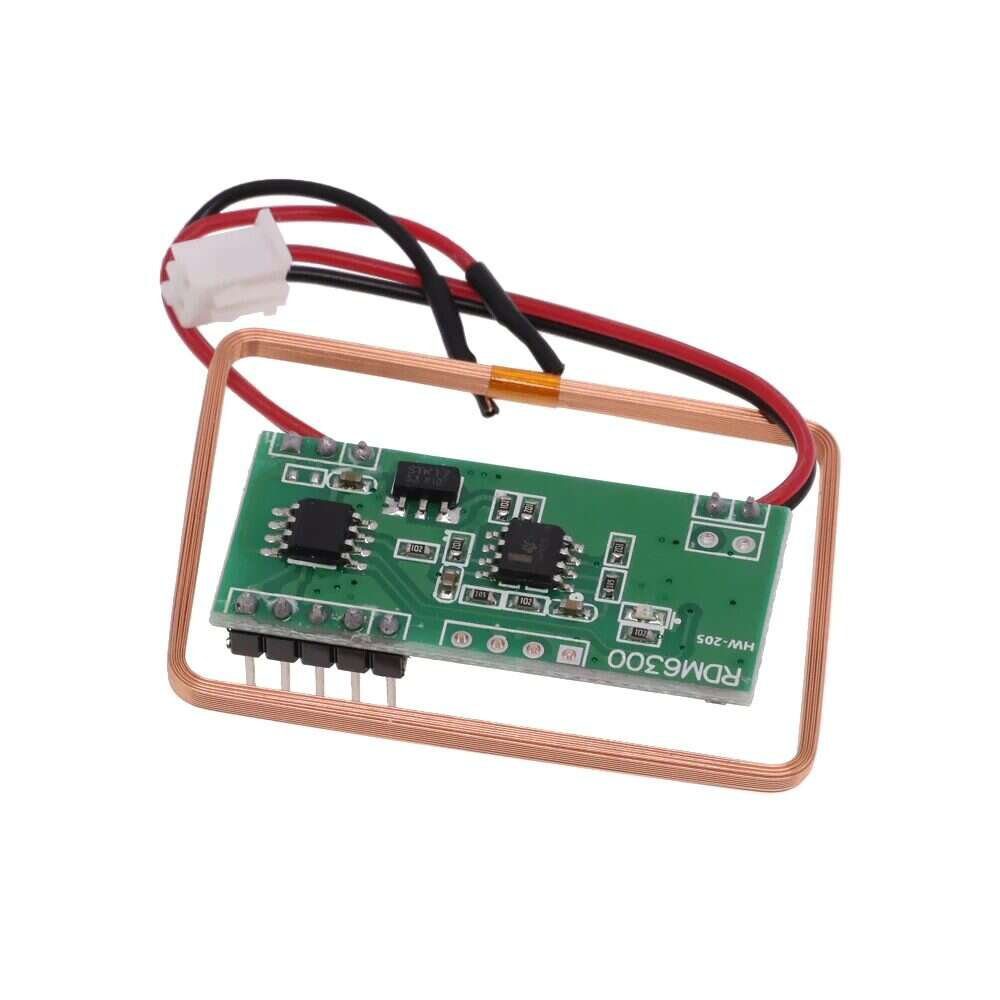

RDM6300 RFID Reader Module – 125KHZ

RDM6300 RFID Reader Module – 125KHz Serial Interface for Contactless Identification

Detailed Description:
The RDM6300 RFID Reader Module is a compact and efficient 125KHz RFID reader designed for contactless identification and access control applications. It reads EM4100 compatible RFID cards or tags and outputs data via a simple UART (serial) interface, making it perfect for integration with microcontrollers like Arduino, ESP32, or Raspberry Pi.

Operating at 125KHz, this module is ideal for low-frequency RFID applications where cost, simplicity, and stability are key. It supports a reading distance of up to 5–10 cm depending on tag size and operates with minimal power—perfect for embedded and portable systems.

Key Features:

• 125KHz RFID Reader – Compatible with EM4100/EM4102 RFID cards and tags

• UART Serial Interface – Easy to connect to microcontrollers (9600bps default)

• Reading Distance: Up to 10cm depending on tag and environment

• Small and Lightweight – Ideal for integration into compact enclosures

• Low Power Consumption – Suitable for battery-powered systems

• Simple Wiring – Just VCC, GND, TX, and RX

• Built-in Antenna – No need for external antenna modules

• LED Indicator – Shows card detection activity

Applications:

• Access Control Systems – Doors, cabinets, lockers

• Time Attendance Devices – Employee or student check-in systems

• Embedded Electronics – Arduino or ESP32-based RFID projects

• Contactless Identification – Smart cards, membership, or security systems

• DIY & Educational Kits – Learn RFID tech in an interactive way

Specifications:

• Model: RDM6300

• Frequency: 125KHz (low-frequency RFID)

• Compatible Tags: EM4100 / EM4102

• Interface: UART Serial (TTL level)

• Baud Rate: 9600 bps

• Operating Voltage: 3.3V – 5V DC

• Power Consumption: ~50mA

• Reading Distance: 5–10 cm (typical)

• Antenna: Built-in

• Dimensions: ~38mm x 20mm x 8mm

The RDM6300 is the perfect entry-level RFID solution for anyone building secure, contactless identification systems.
