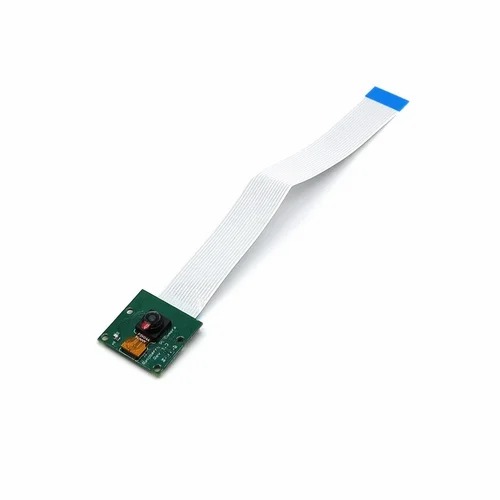

The Raspberry Pi Camera Module 5MP is a compact and high-quality image and video capture accessory compatible with Raspberry Pi 3, 4, and B+ models. It features a 5-megapixel CMOS sensor capable of capturing still images at high resolution and video recording at 1080p30, 720p60, and 640x480p90.
The module connects directly to the CSI (Camera Serial Interface) port on the Raspberry Pi board via the included ribbon cable, allowing for low-latency, high-bandwidth image transfer. Ideal for applications like robot vision, security systems, time-lapse photography, and more.
Key Features
-
5MP CMOS sensor with crisp image quality
-
Supports 1080p at 30fps, 720p at 60fps, and VGA at 90fps
-
Connects via 15-pin CSI interface directly to Raspberry Pi
-
Compatible with Pi 3, Pi 4, Pi 3B+, and Pi 2 models
-
Fully supported by the Raspberry Pi OS camera libraries
-
Compact, lightweight, and breadboard-friendly design
-
Suitable for video streaming, surveillance, facial recognition, and more
Specifications
Parameter | Value |
---|---|
Sensor Type | 5MP OV5647 CMOS |
Maximum Image Resolution | 2592 × 1944 pixels |
Video Resolutions | 1080p @ 30fps, 720p @ 60fps, VGA @ 90fps |
Interface | 15-pin CSI Ribbon Connector |
Lens Type | Fixed-focus |
Operating Voltage | 3.3V (powered via Raspberry Pi) |
Dimensions | Approx. 25mm × 24mm |
Compatibility | Raspberry Pi 2, 3, 3B+, 4 |
Package Includes
-
1 × 5MP Raspberry Pi Camera Module
-
1 × 15-pin CSI Ribbon Cable (approx. 15–20 cm)
