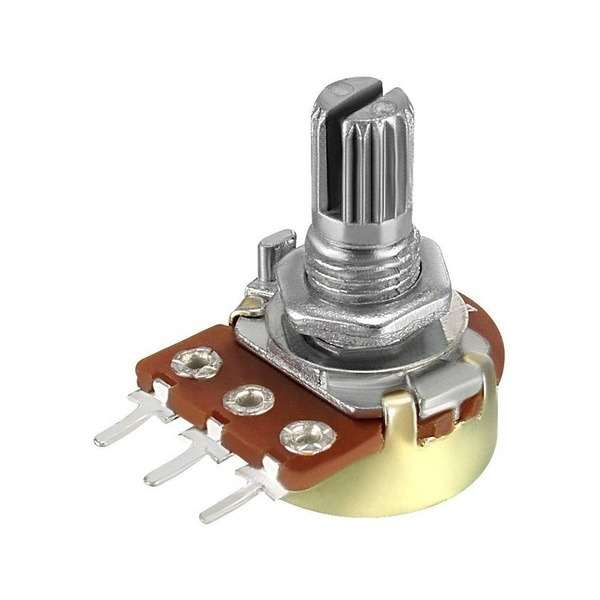

POT5K Ohm 3Pin 15mm Shaft Potentiometer
8,00 EGP
In stock
✅ 5K ohm 3-pin potentiometer
✅ 15mm shaft length for easy handling
✅ Smooth ~270° rotation
✅ Through-hole mounting
✅ Ideal for low-resistance variable control
In stock
Shipping & Delivery
Receipt from the place on the same day or shipping to nearby places
On the same day
6PM - 10 PM
Delivery through a fast shipping company intermediary
1-3 Days
Description
POT 5K Ohm 3-Pin 15mm Shaft Potentiometer
📄 Description:
The 5K Ohm potentiometer is a three-terminal variable resistor designed to provide adjustable resistance in electronic circuits. With a 15mm shaft, it offers smooth manual tuning for applications that require fine resistance control such as sensor calibration, volume control, or voltage adjustment.
It functions as a voltage divider, where rotating the shaft changes the resistance between the wiper and terminals, allowing variable output.
📐 Specifications:
| Parameter | Value |
|---|---|
| Resistance | 5 KΩ (±20% tolerance typical) |
| Number of Pins | 3 |
| Shaft Length | 15 mm |
| Shaft Type | Round (metal or plastic) |
| Mounting Type | Through-hole |
| Power Rating | Typically 0.25W to 0.5W |
| Operating Voltage | Up to ~50V (depends on power rating) |
| Rotational Angle | Approx. 270° |
| Dimensions | Body diameter ~16 mm |
🌟 Key Features:
-
🎚️ 5K ohm resistance for precise low-range adjustments
-
🔄 Smooth ~270-degree rotation for easy tuning
-
🛠️ Standard 3-pin interface for straightforward connection
-
💡 Suitable for sensor calibration, volume control, and signal tuning
-
🔌 Through-hole mount for stable PCB installation
⚙️ Applications:
-
🔊 Audio volume and tone control
-
⚙️ Sensor calibration and fine tuning
-
💡 Brightness or contrast adjustment in displays
-
🧰 DIY electronics and prototyping
-
🔌 Adjustable voltage divider circuits
Package Includes:
POT5K Ohm 3Pin 15mm Shaft Potentiometer.
