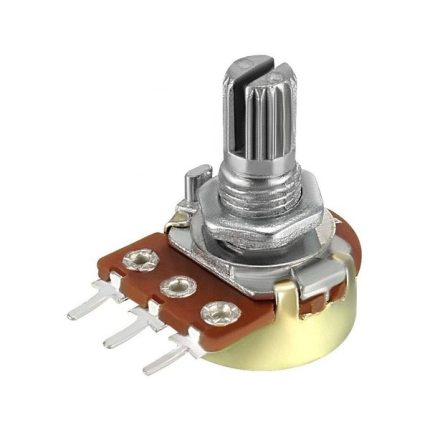

POT500K Ohm 3Pin 15mm Shaft Potentiometer
7,00 EGP
In stock
✅ 500K ohm 3-pin potentiometer
✅ 15mm shaft length for easy handling
✅ Smooth rotation, approx. 270°
✅ Through-hole mounting type
✅ Suitable for analog input adjustments
In stock
Shipping & Delivery
Receipt from the place on the same day or shipping to nearby places
On the same day
6PM - 10 PM
Delivery through a fast shipping company intermediary
1-3 Days
Description
POT 500K Ohm 3-Pin 15mm Shaft Potentiometer
📄 Description:
The 500K Ohm potentiometer is a three-terminal variable resistor commonly used to adjust voltage or signal levels in electronic circuits. Featuring a 15mm metal or plastic shaft, it is suitable for precise manual tuning of parameters such as volume, brightness, or sensor calibration.
This potentiometer operates by rotating the shaft, which moves a wiper along a resistive track, varying resistance between terminals and providing an adjustable voltage divider output.
📐 Specifications:
| Parameter | Value |
|---|---|
| Resistance | 500 KΩ (±20% tolerance typical) |
| Number of Pins | 3 |
| Shaft Length | 15 mm |
| Shaft Type | Round (metal or plastic) |
| Mounting Type | Through-hole |
| Power Rating | Typically 0.25W to 0.5W |
| Operating Voltage | Up to ~50V (depends on power rating) |
| Rotational Angle | Approx. 270° |
| Dimensions | Body diameter ~16 mm |
🌟 Key Features:
-
🎚️ 500K ohm resistance for fine adjustments
-
🔄 Smooth 270-degree rotation
-
🛠️ 3-pin design for easy integration into circuits
-
💡 Ideal for volume control, tuning, calibration
-
🔌 Through-hole mounting for secure PCB installation
⚙️ Applications:
-
🔊 Audio volume and tone controls
-
💡 Brightness and contrast adjustment
-
⚙️ Sensor calibration and signal tuning
-
🧰 DIY electronics and prototypes
-
🔌 Adjustable voltage dividers
