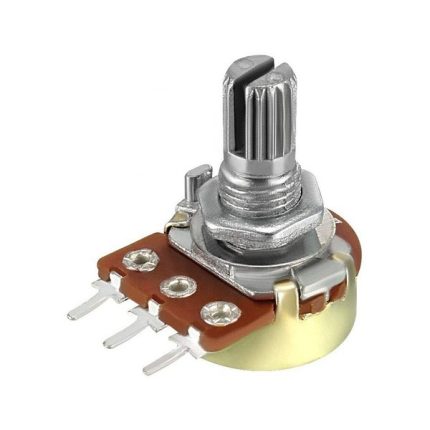

POT100K Ohm 3Pin 15mm Shaft Potentiometer
7,00 EGP
In stock
✅ 100K ohm resistance, 3-pin potentiometer
✅ 15mm shaft length for easy manual adjustment
✅ Smooth ~270° rotation
✅ Through-hole mountable
✅ Suitable for analog signal control
In stock
Shipping & Delivery
Receipt from the place on the same day or shipping to nearby places
On the same day
6PM - 10 PM
Delivery through a fast shipping company intermediary
1-3 Days
Description
POT 100K Ohm 3-Pin 15mm Shaft Potentiometer
📄 Description:
The 100K Ohm potentiometer is a three-terminal adjustable resistor used to vary voltage or signal levels in circuits. Featuring a 15mm long shaft, it provides smooth manual adjustment and precise control in applications like volume knobs, sensor calibration, or brightness adjustment.
Turning the shaft moves a wiper along a resistive element, changing resistance and allowing variable output voltage through a voltage divider configuration.
📐 Specifications:
| Parameter | Value |
|---|---|
| Resistance | 100 KΩ (±20% tolerance typical) |
| Number of Pins | 3 |
| Shaft Length | 15 mm |
| Shaft Type | Round (metal or plastic) |
| Mounting Type | Through-hole |
| Power Rating | Typically 0.25W to 0.5W |
| Operating Voltage | Up to ~50V (depends on power rating) |
| Rotational Angle | Approx. 270° |
| Dimensions | Body diameter ~16 mm |
🌟 Key Features:
-
🎚️ 100K ohm resistance ideal for fine tuning
-
🔄 Smooth rotation through ~270 degrees
-
🛠️ 3-pin configuration for easy circuit integration
-
💡 Used for volume control, signal adjustment, sensor calibration
-
🔌 Through-hole mounting for secure PCB installation
⚙️ Applications:
-
🔊 Audio volume and tone controls
-
💡 Brightness and contrast adjustments
-
⚙️ Sensor calibration and tuning
-
🧰 DIY electronics and prototyping
-
🔌 Variable voltage divider circuits
Package Includes:
POT100K Ohm 3Pin 15mm Shaft Potentiometer.
