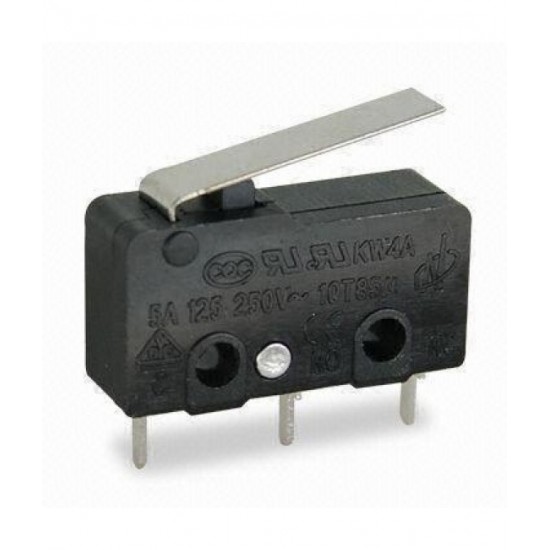

Micro Limit Switch SM Short Lever 3A 20×6 mm

The Micro Limit Switch SM with Short Lever is a compact and reliable switch designed for use in various applications where precise mechanical control is required. This limit switch is commonly used in automation systems, robotics, machinery, and other applications where the detection of movement or position is crucial. The 3A current rating makes it suitable for low-power control circuits, ensuring safe and efficient operation. Its short lever design allows for easy activation in confined spaces or applications where minimal movement is needed.

Key Features:

• Compact Design: Small 20×6 mm size, making it ideal for tight spaces and small enclosures.
• Short Lever: Offers precise activation with minimal mechanical movement, perfect for delicate applications.
• 3A Current Rating: Suitable for low-power electrical circuits with up to 3 amps of current.
• Durable Construction: Designed for high reliability and long service life, even in harsh environments.
• Easy Mounting: Simple to integrate into a variety of systems with standard mounting holes.
• Versatile Activation: Can be used for detecting limits in machinery, position sensing, or emergency stop functions.

Specifications:

• Switch Type: Micro limit switch with short lever
• Current Rating: 3A (at 250V AC)
• Voltage Rating: Typically 250V AC
• Actuation Type: Lever (short lever design)
• Mounting Type: Panel mount or through-hole (depending on the design)
• Size: 20 mm (Length) × 6 mm (Width)
• Contact Configuration: Single pole single throw (SPST) or other available configurations
• Operating Force: Low force required for actuation, making it suitable for delicate tasks
• Mechanical Life: Typically 1 million operations (varies by manufacturer)
• Operating Temperature: -25°C to +85°C (depends on model and manufacturer)
• Certifications: CE, UL, or other relevant certifications depending on region and application

Applications:

• Automation Systems: Used for detecting positions of moving parts or controlling the on/off status of machines.
• Robotics: Ideal for position sensing or triggering events based on mechanical movement.
• Machinery: Employed in industrial equipment for limiting the movement of parts or detecting end positions.
• Control Panels: Can be used in control panels for machines to limit or monitor various mechanical actions.
• Home Appliances: Used in small electronics and appliances to sense movement or position.

The Micro Limit Switch SM Short Lever 3A is an excellent choice for applications requiring precise, space-efficient, and reliable switching operations. Its small footprint and efficient design make it versatile for use in various automation, control, and sensing systems.
