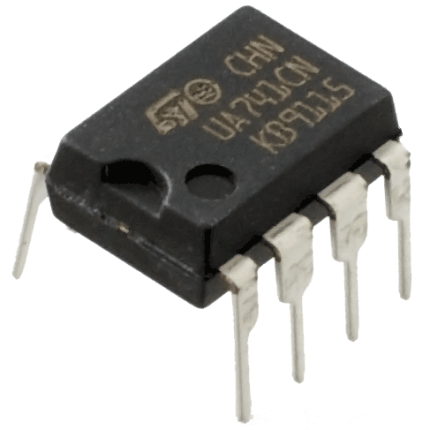

lm741 Operational Amplifier
✅ Classic General-Purpose Op-Amp
✅ ±22V dual supply or 44V single supply
✅ Internally compensated for unity gain
✅ Low input offset and bias current
✅ Ideal for filters, amplifiers, analog control
7,00 EGP
Payment Methods:
Description
🎛️ LM741 – General Purpose Operational Amplifier
📄 **Description:
The LM741** is a widely-used general-purpose operational amplifier designed for a wide range of analog applications. It features high gain, internal frequency compensation, short-circuit protection, and stable operation across a wide voltage range.
The LM741 is ideal for use in signal conditioning, analog computation, summing amplifiers, integrators, and active filters. It’s pin-compatible with industry-standard 8-pin DIP op-amps, making it a staple in both educational and industrial applications.
📐 Specifications:
| Parameter | Value |
|---|---|
| Supply Voltage Range (Dual) | ±10V to ±22V |
| Supply Voltage Range (Single) | 20V to 44V |
| Input Offset Voltage | 1mV (typical) |
| Input Bias Current | 80nA (typical) |
| Open-Loop Voltage Gain | 200,000 (typical) |
| Common Mode Rejection Ratio | 90 dB (typical) |
| Slew Rate | 0.5 V/µs |
| Gain Bandwidth Product | 1 MHz |
| Output Short-Circuit Current | ±25mA |
| Operating Temperature Range | 0°C to +70°C |
| Package Types | DIP-8, SOIC-8, TO-99 |
🌟 Key Features:
-
📈 High Open-Loop Gain (~200,000)
-
🛡️ Short-Circuit Protection
-
🔁 Internally Frequency Compensated
-
⚡ Wide Power Supply Range
-
🧩 Pin-Compatible with Industry Standard Op-Amps
-
🔧 Easy to Use in Analog Circuits
Specification
General
| WeightWeight | 0,0000 g |
|---|---|
 Dimensions | 1 × 0,7 × 0,5 cm |
| Product Name | LM741 Operational Amplifier |
| IC Type | General-Purpose Op-Amp |
| Supply Voltage Range | ±5V to ±18V |
| Input Offset Voltage | 1mV–6mV |
| Input Bias Current | 80nA |
| Slew Rate | 0.5V/µs |
| Gain Bandwidth Product | 1MHz |
| Output Current | 25mA |
| Common Mode Rejection Ratio (CMRR) | 70dB |
| Package Type | DIP-8 |
| Operating Temperature | 0°C to +70°C |
| Applications | Signal Amplification, Filters, Comparators, Analog Circuits, Instrumentation |
| Pin Configuration | 8-Pin DIP Layout |
