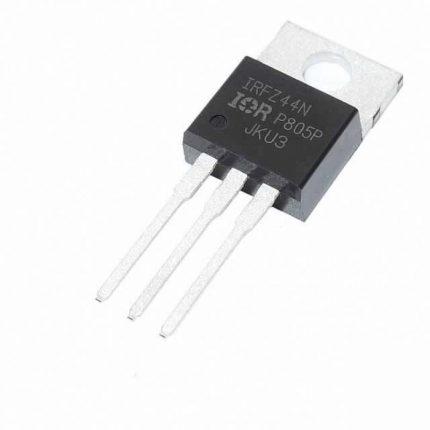

IRFZ44N 49A, 55V, 0.0175 Ohm, N-Channel Power MOSFET .
-
49A, 55V N-Channel MOSFET
-
Ultra-low R<sub>DS(on)</sub>: 0.0175Ω – high efficiency
-
Fast switching with low gate drive
-
TO-220 package – easy to mount & cool
-
Perfect for motor drivers, inverters, and DC switching
20,00 EGP
Payment Methods:
Description
The IRFZ44N is a high-power N-channel MOSFET designed for fast switching and efficient power management. With a high current rating of 49A and low on-resistance (R_DS(on)) of 0.0175Ω, it is ideal for motor drivers, power supplies, inverters, and high-current switching applications.
Features:
✅ High current capacity (49A) for power electronics applications
✅ Low R_DS(on) (0.0175Ω) for minimal power loss
✅ Fast switching speed for efficient operation
✅ TO-220 package for easy mounting and heat dissipation
✅ Commonly used in motor drivers, DC-DC converters, and battery management systems
Package Includes:
- 1 x IRFZ44N TO-220 MOSFET
Specifications:
🔹 Manufacturer: Generic
🔹 Mounting Style: Through-Hole
🔹 Package Type: TO-220AB
🔹 Transistor Type: N-Channel
🔹 Voltage Rating (V_DS): 55V
🔹 Current Rating (I_D): 49A
🔹 On-Resistance (R_DS(on)): 0.0175Ω
🔹 Number of Channels: 1
Specification
General
| WeightWeight | 0,00 g |
|---|---|
| Type | N-Channel Power MOSFET |
| Model | IRFZ44N |
| Maximum Drain Current (ID) | 49 A |
| Drain-Source Voltage (VDS) | 55 V |
| RDS(on) (On-Resistance) | 0.0175 Ω (typical) |
| Gate Threshold Voltage (VGS(th)) | 2–4 V |
| Power Dissipation | 94 W (typical) |
| Package Type | TO-220 |
| Operating Temperature | -55°C to +175°C |
| Applications | Motor Drivers, Power Switching, DC-DC Converters, Arduino/Raspberry Pi Projects, High Current Electronics |
| Dimensions | 10x4x15 (mm) (excluding heatsink tab) |
| Package Contents | 1× IRFZ44N N-Channel Power MOSFET |
