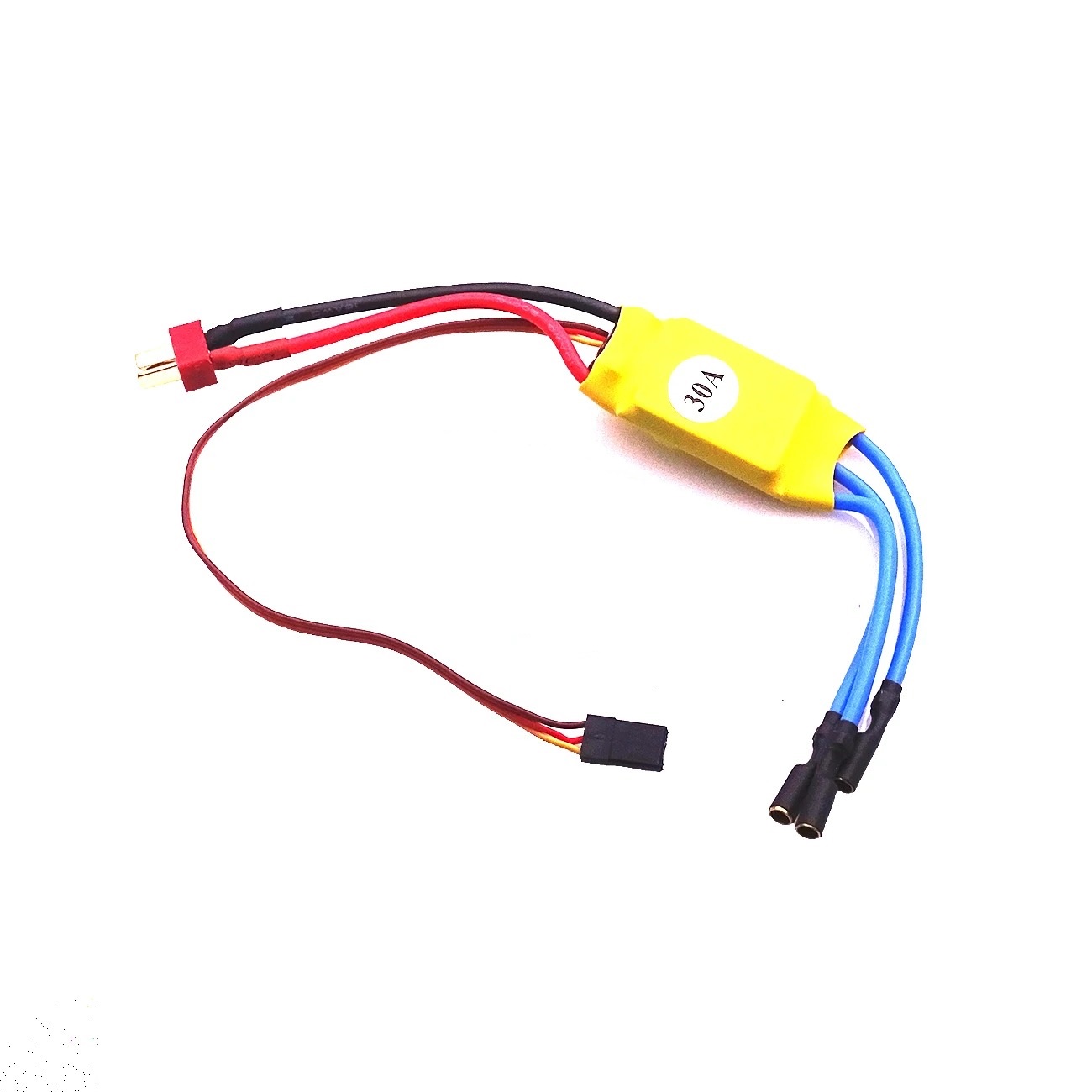

ESC 30A Brushless Speed Controller

Description:
This 30A Electronic Speed Controller (ESC) is designed to provide reliable and efficient power control for brushless DC motors in a variety of RC (Radio Control) applications. It's an essential component for RC airplanes, multirotors (drones), helicopters, and some smaller RC cars or boats. Featuring a pre-soldered T-Type (Deans compatible) battery connector for secure power input and 3.5mm bullet connectors for easy motor connection, this ESC is ready for quick installation. It typically includes a built-in BEC (Battery Eliminator Circuit) to power your receiver and servos directly from the main flight battery, simplifying your wiring setup. With programmable settings and multiple protection features, this ESC offers a balance of performance, safety, and ease of use for hobbyists.

Short Specifications:

• Continuous Current: 30A

• Burst Current: 40A (for up to 10 seconds)

• Input Voltage: 2-4S LiPo (Lithium Polymer) / 5-12 cells NiMH/NiCd

• BEC Output: 5V / 2A (Typical, may be Linear or Switching depending on specific model)

• Battery Connector: T-Type (Deans Compatible), pre-soldered

• Motor Connectors: 3 x 3.5mm Female Bullet Connectors, pre-soldered

• Programming: Yes (Typically via transmitter stick movements or optional programming card)

• Dimensions: (Varies, e.g., approx. 45mm x 24mm x 11mm – excluding wires)

• Weight: (Varies, e.g., approx. 25g – including wires and connectors)

Features:

• Reliable Performance: Delivers consistent power output for smooth motor operation.

• Pre-Soldered Connectors: Comes with a T-Type battery connector and 3.5mm motor bullet connectors installed for convenient plug-and-play setup.

• Built-in BEC: Provides regulated 5V power to the RC receiver and servos, eliminating the need for a separate receiver battery.

• Programmable Settings: Allows customization of parameters such as:

  • Brake (On/Off)

  • Battery Type (LiPo / NiMH)

  • Low Voltage Cutoff (LVC) Mode & Threshold

  • Timing Settings (to optimize for different motor types)

  • Start Mode (Soft / Normal / Very Soft)

• Multiple Protection Features:

  • Low Voltage Cutoff Protection: Prevents over-discharge of LiPo batteries.

  • Over-Heat Protection: Reduces power output or shuts down if ESC temperature gets too high.

  • Throttle Signal Loss Protection: Safely shuts down the motor if the radio signal is lost.

• Smooth & Linear Throttle Response: Ensures precise control over motor speed.

• High-Efficiency MOSFETs: Utilizes quality components for better efficiency and reduced heat generation.

• Easy Throttle Range Calibration: Simple procedure to match the ESC to your transmitter's throttle range for optimal performance.

• Compact & Lightweight Design: Suitable for applications where space and weight are considerations.
