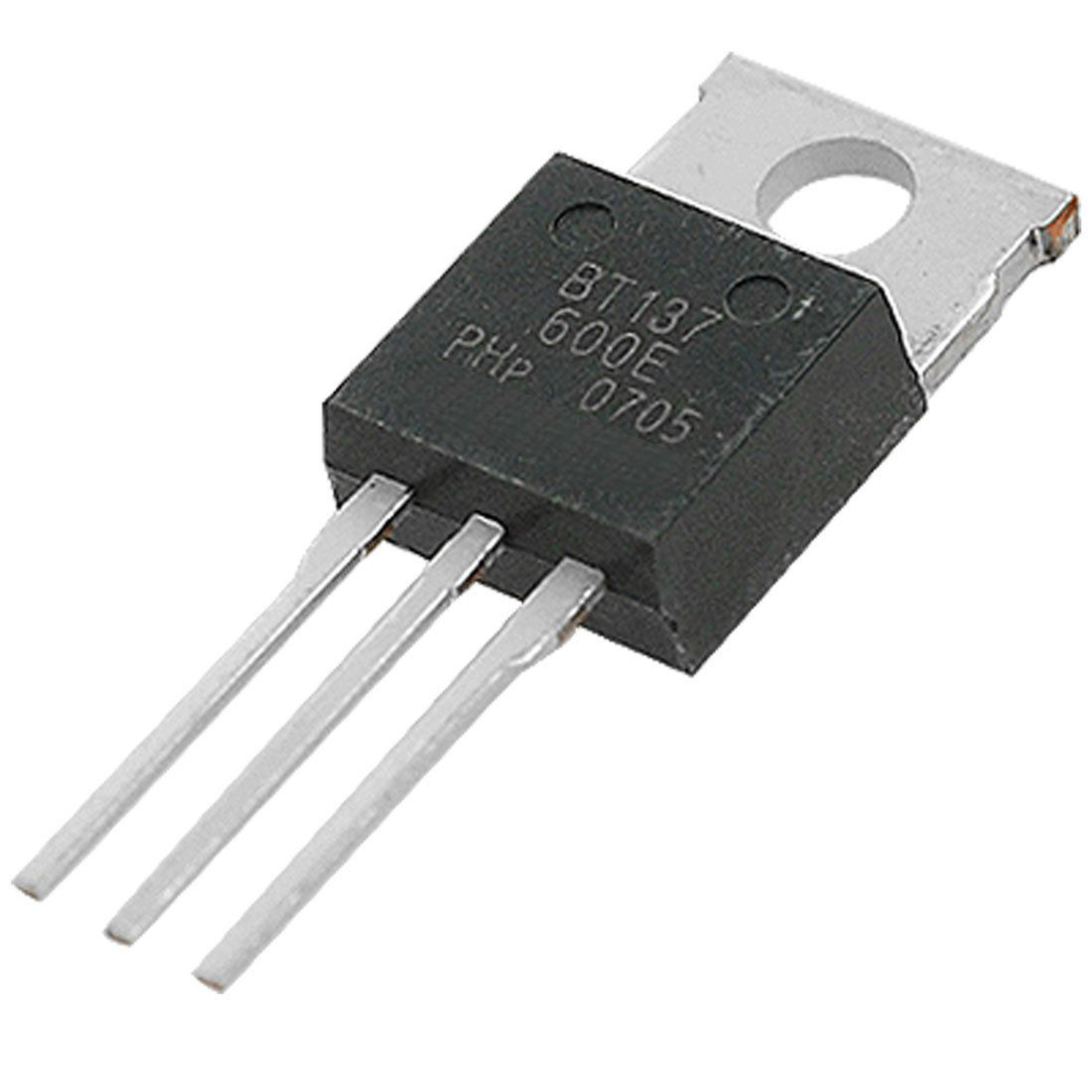

BT137-600E Triac – 600V 8A
- 600V Voltage Rating – Handles high-voltage AC loads efficiently
- 8A RMS Current – Suitable for motors, heaters, and lighting systems
- TO-220 Package – Ensures effective heat dissipation and easy mounting
- Robust Industrial Design – Operates reliably in harsh conditions
- Microcontroller Compatible – Can be driven via optocouplers or drivers
- Trigger Current: 10–25mA – Standard gate requirements for stable control
- Low On-State Voltage Drop – 1.7V max at 8A for efficient power use
- Wide Operating Temperature – Performs from -40°C to +125°C
- Ideal for Automation – HVAC, energy control, and power regulation systems
13,00 EGP
In stock
In stock
Payment Methods:
Description
The BT137-600E Triac is a robust, high-current semiconductor device engineered for demanding AC load control in industrial and high-power applications. With an impressive 8A RMS current rating and 600V voltage capability, this Triac excels in switching heavy-duty AC loads such as motors, industrial heaters, and high-intensity lighting systems. While it requires a slightly higher gate trigger current (10mA typical) compared to logic-level Triacs like the BT136, its rugged design ensures reliable performance in harsh environments. Compatible with driver circuits for microcontroller integration, the BT137-600E is ideal for automation systems, HVAC controls, and energy management solutions. The TO-220 package guarantees efficient thermal dissipation, making it a staple in industrial and commercial electronics.
Specifications (Categorized):
Electrical Ratings
-
Voltage Rating: 600V (Repetitive Peak Off-State Voltage, VDRM)
-
Current Rating: 8A RMS (On-State Current)
On-State Performance
-
On-State Voltage Drop (Vtm): 1.7V (Max at 8A)
Trigger & Stability
-
Gate Trigger Current (Igt): 10mA (Typical), 25mA (Max)
-
Holding Current (Ih): 10mA (Max)
-
Critical Rate of Rise (dv/dt): 50V/µs (Min)
Environmental & Mechanical
-
Operating Temperature: -40°C to +125°C
-
Package: TO-220 (Through-Hole Mounting)
Specification
General
| Weight Weight | 0,0000 g |
|---|---|
| voltage-rating |
600V (VDRM) |
| current-rating |
8A RMS |
| on-state-voltage-drop-vtm |
1.7V max at 8A |
| gate-trigger-current-igt |
10mA typical, 25mA max |
| holding-current-ih |
10mA max |
| critical-rate-of-rise-dv-dt |
50V/µs min |
| operating-temperature |
-40°C to +125°C |
| package |
TO-220 (Through-Hole) |
