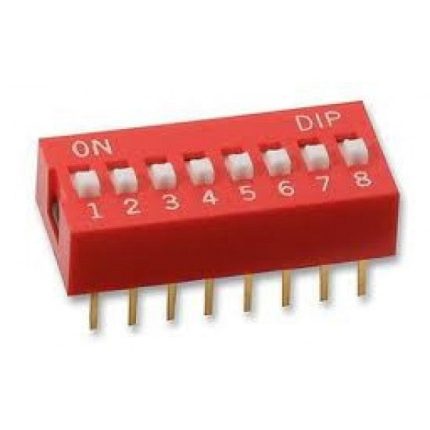

8 Position DIP Switch
11,00 EGP
In stock
- 8 individual ON/OFF toggle switches
- Standard 2.54mm DIP format
- Through-hole mounting for PCB
- Rated for 12–24V DC, 25–50mA
- High insulation resistance (≥100MΩ)
- Compact binary configuration solution
- Ideal for address, mode, and feature settings
In stock
Shipping & Delivery
Receipt from the place on the same day or shipping to nearby places
On the same day
6PM - 10 PM
Delivery through a fast shipping company intermediary
1-3 Days
Description
8-Position DIP Switch – Through-Hole Type
The 8-position DIP switch provides a compact and dependable method for configuring binary settings in electronic circuits. Each of the eight individual switches can be toggled ON or OFF, making it ideal for address selection, feature enabling, or mode control in embedded systems, microcontrollers, communication interfaces, and more.
Key Features:
-
Type: Dual In-line Package (DIP)
-
Number of Switches: 8 individual toggle switches
-
Mounting Style: Through-hole (for secure PCB soldering)
-
Voltage Rating: 12V–24V DC (typical, varies by model)
-
Current Rating: 25mA to 50mA
-
Contact Resistance: ≤ 100Ω
-
Insulation Resistance: ≥ 100MΩ @ 500V DC
-
Operating Temperature Range: -20°C to +70°C
-
Actuation Type: Manual sliding/toggling
-
Positions per Switch: 2 (ON / OFF)
-
Pitch: Standard 2.54mm pin spacing for easy PCB mounting
Applications:
-
Device address configuration (e.g. I2C, RS-485)
-
Feature selection and mode control in embedded designs
-
DIP-based jumper replacement
-
Logic-level programming and prototyping
Package Includes:
-
1 × 8-Position DIP Switch (Through-Hole)
💡 Tip: Use a fine-tipped tool or tweezers to toggle switches without damaging the contacts.
