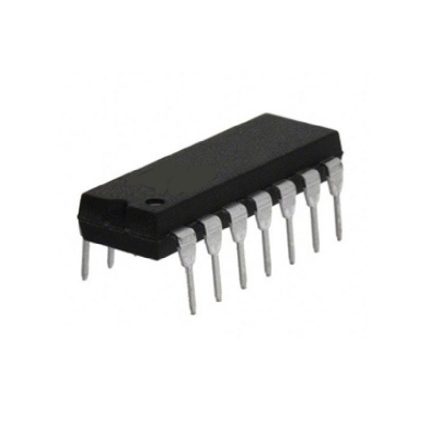

7402 Quad 2-input NOR Gate
The 74LS02 provides high-speed performance and is used in a variety of digital logic circuits where NOR gates are needed. Its low power consumption and fast switching make it suitable for many digital applications.
EGP14.00
In stock
Estimated delivery dates: 22-12-2024 - 25-12-2024
7402 – 7402 Quad 2-Input NOR Gate Datasheet
Features
- Four Independent 2-Input NOR Gates
- Outputs Directly Interface to CMOS, NMOS and TTL
- Large Operating Voltage Range
- Wide Operating Conditions
Pin Layout
Pin Description
Pin Number | Description |
---|---|
1 | Y Output Gate 1 |
2 | A Input Gate 1 |
3 | B Input Gate 1 |
4 | Y Output Gate 2 |
5 | A Input Gate 2 |
6 | B Input Gate 2 |
7 | Ground |
8 | A Input Gate 3 |
9 | B Input Gate 3 |
10 | Y Output Gate 3 |
11 | A Input Gate 4 |
12 | B Input Gate 4 |
13 | Y Output Gate 4 |
14 | Vcc – Positive Supply |
Dimensional Drawing
Technical Data
Absolute Maximum Ratings
Supply Voltage |
7V |
Input Voltage |
5.5V |
Operating Free Air Temperature |
0°C to +70°C |
Storage Temperature Range |
-65°C to +150°C |
Recommended Operating Conditions
Symbol | Parameter | Min | Typ | Max | Units |
---|---|---|---|---|---|
Vcc | Supply Voltage | 4.75 | 5 | 5.25 | V |
Vih | HIGH Level Input Voltage | 2 | V | ||
Vil | LOW Level Input Voltage | 0.8 | V | ||
Ioh | HIGH Level Output Current | -0.4 | mA | ||
Iol | LOW Level Output Current | 16 | mA | ||
Ta | Free Air Operating Temperature | 0 | 70 | °C |
Electrical Characteristics
Symbol | Parameter | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|---|
Vi | Input Clamp Voltage | Vcc=Min Ii=-12mA | -1.5 | V | ||
Voh | HIGH Level Output Voltage | Vcc=Min Ioh=MAX Vil=MAX | 2.4 | 3.4 | V | |
Vol | LOW Level Output Voltage | Vcc=Min Iol=MAX Vih=MAX | 0.2 | 0.4 | V | |
Ii | Input Current@MAX Input Voltage | Vcc=Max Vi=5.5V | 1 | mA | ||
Iih | HIGH Level Input Current | Vcc=Max Vi=2.4V | 40 | µA | ||
Iil | LOW Level Input Current | Vcc=Max Vi=0.4V | -1.6 | mA | ||
Ios | Short Circuit Output Current | Vcc=Max | -18 | -55 | mA | |
Icch | Supply Current with Outputs HIGH | Vcc=Max | 4 | 8 | mA | |
Iccl | Supply Current with Outputs LOW | Vcc=Max | 12 | 22 | mA |
Switching Characteristics at Vcc=5V,Ta=25°C
Symbol | Parameter | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|---|
tplh | Propagation Delay Time LOW-to-HIGH Level Output | Cl=15pF Rl=400R | 22 | nS | ||
tphl | Propagation Delay Time HIGH-to-LOW Level Output | Cl=15pF Rl=400R | 15 | nS |
Pin Layout
Pin Number | Description |
---|---|
1 | Y Output Gate 1 |
2 | A Input Gate 1 |
3 | B Input Gate 1 |
4 | Y Output Gate 2 |
5 | A Input Gate 2 |
6 | B Input Gate 2 |
7 | Ground |
8 | A Input Gate 3 |
9 | B Input Gate 3 |
10 | Y Output Gate 3 |
11 | A Input Gate 4 |
12 | B Input Gate 4 |
13 | Y Output Gate 4 |
14 | Vcc – Positive Supply |
Technical Data
Absolute Maximum Ratings
Supply Voltage | 7V |
Input Voltage | 5.5V |
Operating Free Air Temperature | 0°C to +70°C |
Storage Temperature Range | -65°C to +150°C |
Recommended Operating Conditions
Symbol | Parameter | Min | Typ | Max | Units |
---|---|---|---|---|---|
Vcc | Supply Voltage | 4.75 | 5 | 5.25 | V |
Vih | HIGH Level Input Voltage | 2 | V | ||
Vil | LOW Level Input Voltage | 0.8 | V | ||
Ioh | HIGH Level Output Current | -0.4 | mA | ||
Iol | LOW Level Output Current | 16 | mA | ||
Ta | Free Air Operating Temperature | 0 | 70 | °C |
Electrical Characteristics
Symbol | Parameter | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|---|
Vi | Input Clamp Voltage | Vcc=Min Ii=-12mA | -1.5 | V | ||
Voh | HIGH Level Output Voltage | Vcc=Min Ioh=MAX Vil=MAX | 2.4 | 3.4 | V | |
Vol | LOW Level Output Voltage | Vcc=Min Iol=MAX Vih=MAX | 0.2 | 0.4 | V | |
Ii | Input Current@MAX Input Voltage | Vcc=Max Vi=5.5V | 1 | mA | ||
Iih | HIGH Level Input Current | Vcc=Max Vi=2.4V | 40 | µA | ||
Iil | LOW Level Input Current | Vcc=Max Vi=0.4V | -1.6 | mA | ||
Ios | Short Circuit Output Current | Vcc=Max | -18 | -55 | mA | |
Icch | Supply Current with Outputs HIGH | Vcc=Max | 4 | 8 | mA | |
Iccl | Supply Current with Outputs LOW | Vcc=Max | 12 | 22 | mA |
Switching Characteristics at Vcc=5V,Ta=25°C
Symbol | Parameter | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|---|
tplh | Propagation Delay Time LOW-to-HIGH Level Output | Cl=15pF Rl=400R | 22 | nS | ||
tphl | Propagation Delay Time HIGH-to-LOW Level Output | Cl=15pF Rl=400R | 15 | nS |
Dimensional Drawing
Datasheet
Datasheet-74HC02 Quad 2-Input NOR Gate IC (7402 IC) DIP-14 Package
1 file(s) 0.00 KB
