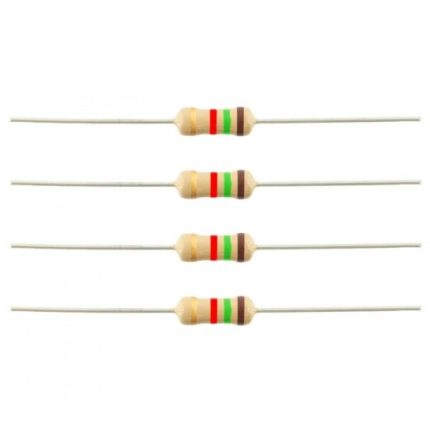

330 Ohm 1/4 Watt Resistors

The 330 Ohm 1/4 Watt resistor is a key electronic component designed to regulate current flow and manage voltage levels in circuits. Its standardized size and power rating make it an essential addition to various applications, from simple LED circuits to more complex signal processing setups.

Key Specifications

• Resistance: 330 Ohms (±5% tolerance ensures precise functionality in circuits).
• Power Rating: 0.25 Watts, capable of dissipating low power safely without overheating.
• Material Type: Typically carbon film, known for reliability and affordability.
• Identification: Easily recognizable by its color bands: orange, orange, brown, and gold (resistance value and tolerance).

How It Works in Circuits

Resistors like the 330 Ohm 1/4 Watt component control the flow of electric current by creating a precise level of resistance. For instance:

• In LED circuits: This resistor prevents the LED from receiving excessive current, protecting it from damage.
• Voltage division: It helps divide a voltage source into smaller, manageable levels for sensitive components.

Applications

1. LED Current Limiting:

   • Example: Connecting a 330 Ohm resistor in series with a red LED powered by a 5V supply ensures safe operation. Without the resistor, the LED could burn out due to high current.

2. Microcontroller Interfacing:

   • Example: When interfacing Arduino or similar microcontrollers with LEDs, a 330 Ohm resistor ensures the microcontroller’s I/O pin isn’t overloaded.

3. Audio Circuits:

   • Example: Used in signal pathways to manage levels and reduce noise.

Why Choose 1/4 Watt

The 1/4 Watt rating indicates the resistor can dissipate up to 0.25 Watts of power safely. It is ideal for most low-power electronic circuits where the combination of compact size and adequate power handling is required.

Tips for Use

• Power Calculation: Always calculate the power dissipation using P=I2×RP = I^2 times RP=I2×R or P=V2/RP = V^2 / RP=V2/R. Ensure it stays below 0.25 Watts.
• Series and Parallel Configurations: Combine multiple resistors to achieve custom resistance values or to increase power handling capacity in parallel setups.

The 330 Ohm 1/4 Watt resistor is a must-have for beginners and professionals, offering reliability and versatility in both experimental and final product designs. Its role in regulating current and protecting components makes it indispensable in countless projects.
