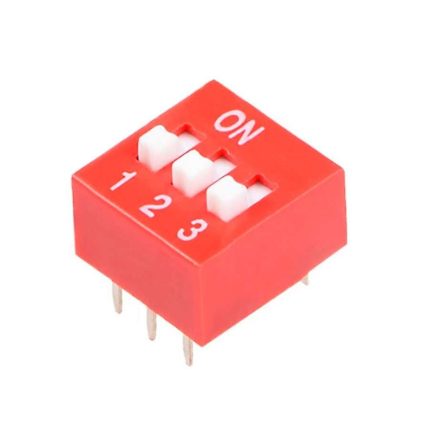

3 Position DIP Switch

6,00 EGP

In stock

  • 3 individual SPST slide switches in a single DIP package
  • 2.54mm pitch – perfect for breadboards and PCBs
  • Clear ON/OFF labels for easy configuration
  • Compact, low-profile design for tight spaces
  • 25mA, 24V DC rated with ≤50mΩ contact resistance
  • -20°C to +70°C operating temperature range
  • Ideal for address setting, logic input, configuration
  • Through-hole mount – microcontroller & embedded projects ready

In stock

Estimated delivery dates: August 3, 2025 – August 6, 2025

Shipping & Delivery

  • Local pickup

Receipt from the place on the same day or shipping to nearby places

On the same day

6PM - 10 PM

  • Shipping company

Delivery through a fast shipping company intermediary

1-3 Days

Description

The 3 Position DIP Switch is a compact and reliable switch used for adjusting configuration settings in electronic circuits. This switch allows for easy manual control, enabling or disabling specific features in your project. With three distinct positions, it’s ideal for setting binary options or selecting between different operating modes.

Specifications:

  • Number of Positions: 3
  • Type: DIP (Dual Inline Package)
  • Mounting Style: Through-hole
  • Current Rating: Typically 0.1A
  • Voltage Rating: Up to 12V DC
  • Contact Resistance: Low for reliable performance
  • Material: Durable plastic housing with gold-plated contacts for corrosion resistance
  • Dimensions: Standard 2.54mm pitch
  • Package: Single switch in a row of 3 positions

Key Features:

  • Compact Design: Saves space while offering three functional positions
  • Easy Configuration: Perfect for setting options like on/off, mode selection, or binary choices
  • Durability: Long-lasting switch with low contact resistance
  • Wide Application: Ideal for electronic projects, circuit boards, and prototypes
  • User-Friendly: Easy to use for both beginners and advanced electronics enthusiasts

The 3 Position DIP switch is widely used in embedded systems, microcontroller projects, and devices that require manual configuration without needing software adjustments.
