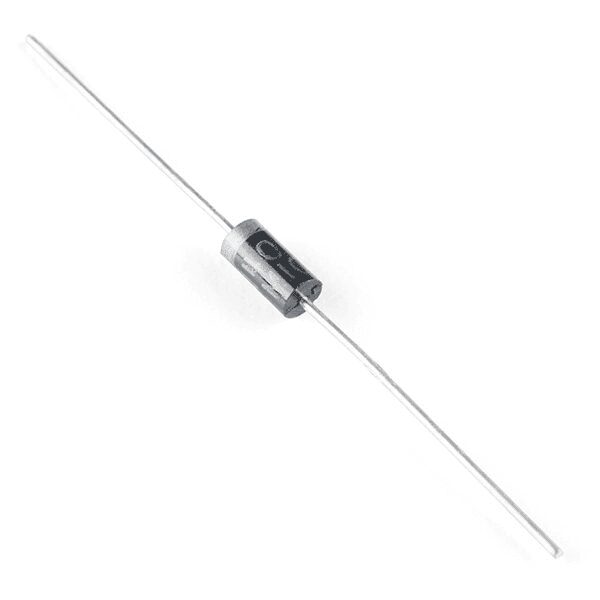

1N4007 General Purpose Plastic Rectifier ( 1A , 1000V )
- 1A current capacity
- 1000V reverse voltage rating
- DO-41 plastic package
- Ideal for low-frequency AC/DC rectification
- General-purpose use in power supplies and circuits
1,00 EGP
In stock
In stock
Payment Methods:
Description
1N4007 General Purpose Plastic Rectifier (1A, 1000V)
The 1N4007 is a widely used general-purpose rectifier diode, designed for low-frequency rectification in power supplies and other electronic circuits. With a maximum repetitive reverse voltage of 1000V and a forward current rating of 1A, this diode is suitable for converting AC to DC in a variety of consumer and industrial electronics.
Housed in a durable DO-41 plastic package, the 1N4007 provides excellent performance and reliability for hobbyists and professionals alike.
✅ Key Features:
-
Maximum Average Forward Current: 1A
-
Peak Reverse Voltage: 1000V
-
Surge Overload Rating: 30A (8.3 ms single half-sine wave)
-
High Reliability: Ideal for general-purpose rectification
-
Low Forward Voltage Drop: Typically ~1.1V at 1A
-
Standard DO-41 Package: Easy to install in through-hole PCBs
-
Reverse Recovery Time: Slow (not for high-speed switching)
📐 Specifications:
| Parameter | Value |
|---|---|
| Part Number | 1N4007 |
| Package Type | DO-41 |
| Max. Repetitive Peak Reverse Voltage (VRRM) | 1000V |
| Max. RMS Voltage | 700V |
| Max. DC Blocking Voltage | 1000V |
| Max. Average Forward Current (IF(av)) | 1A |
| Peak Forward Surge Current (IFSM) | 30A (8.3 ms) |
| Forward Voltage Drop (VF) | ~1.1V @ 1A |
| Reverse Recovery Time | >2µs (slow) |
| Operating Temperature Range | -65°C to +150°C |
⚙️ Applications:
-
AC to DC conversion
-
Power adapters and chargers
-
Low-frequency rectifiers
-
Battery charging circuits
-
DIY electronics and educational projects
-
Reverse polarity protection
Specification
General
| Weight Weight | 0,001 g |
|---|---|
Dimensions
|
2,5 × 0,5 × 0,5 mm |
| Type |
Diode / Rectifier |
| Model |
1N4007 |
| Maximum Forward Current |
1 A |
| Peak Reverse Voltage |
1000 V |
| Forward Voltage Drop |
0.7 V (typical at 1 A) |
| Reverse Recovery Time |
30 µs (typical) |
| Package Type |
DO-41 |
| Operating Temperature |
-55°C to +150°C |
| Applications |
Power Supplies, Rectification, Electronics Circuits, DIY Projects |
| Package Contents |
1× 1N4007 General Purpose Plastic Rectifier |
