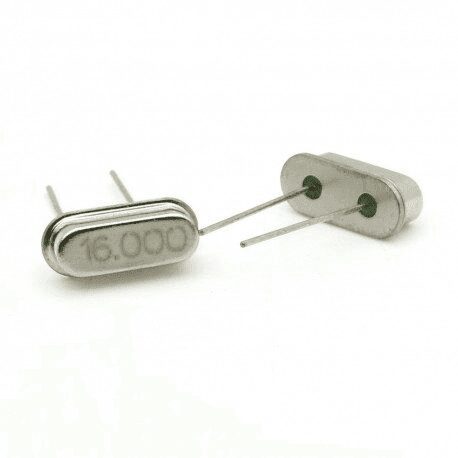

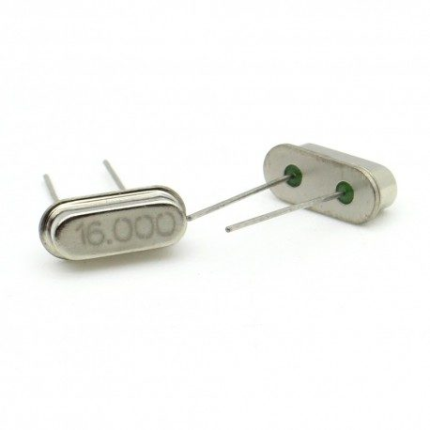

16.000MHz Low Profile Crystal
-
16.000MHz precise timing frequency
-
Slim, low-profile design for compact PCBs
-
Excellent frequency stability and reliability
-
Ideal for Arduino, STM32, AVR, and other MCUs
-
Suitable for clocks, timers, and communication systems
5,00 EGP
In stock
In stock
Payment Methods:
Description
16.000MHz Low Profile Crystal Oscillator
This 16.000MHz low-profile crystal is a compact and precise timing component used in microcontroller circuits, clocks, and communication systems. It offers stable frequency output with tight tolerance and a slim profile, making it ideal for space-constrained applications such as embedded systems, Arduino projects, and high-frequency timing circuits.
Specifications:
-
Frequency: 16.000 MHz
-
Package Type: Low Profile Through-Hole or SMD (varies by model)
-
Load Capacitance: Typically 18pF (check datasheet for exact)
-
Frequency Tolerance: ±20ppm (typical)
-
Operating Temperature: -20°C to +70°C (or wider range depending on variant)
-
Aging: ±5ppm/year
-
Height: ~3.2mm or less (low profile variant)
-
Applications: Microcontroller clock source (e.g., ATmega328P), digital communication timing, frequency generation
Specification
General
| Weight Weight | 0,001 g |
|---|---|
Dimensions
|
1,1 × 0,4 × 0,3 mm |
| Type |
Quartz Crystal Oscillator |
| Frequency |
16.000 MHz |
| Load Capacitance |
20 pF (typical) |
| Operating Voltage |
3.3–5 V DC (depending on circuit) |
| Frequency Tolerance |
±20 ppm (typical) |
| Temperature Stability |
±50 ppm |
| Package Type |
Low Profile (HC-49S / SMD variant possible) |
| Operating Temperature |
-20°C to +70°C |
| Applications |
Microcontroller Clock Source, Timing Circuits, Arduino / DIY Electronics, Oscillator Circuits |
| Package Contents |
1× 16.000 MHz Low Profile Crystal |
