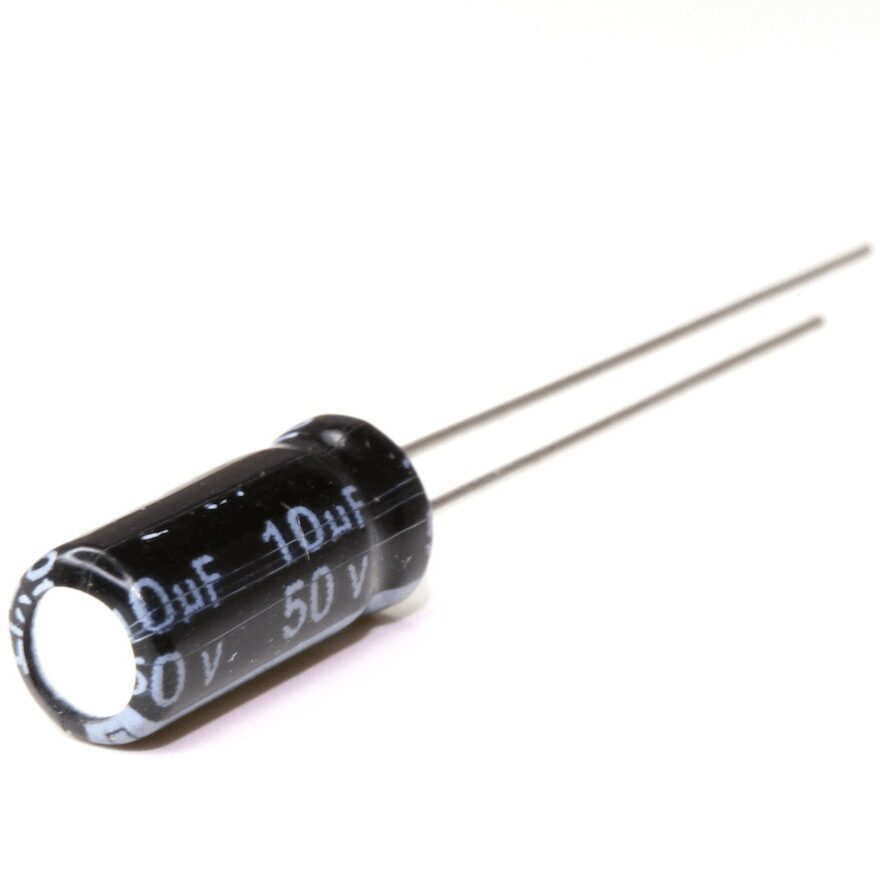

10uF 50V Radial Electrolytic Capacitor
- 10µF capacitance, ideal for filtering and decoupling
- Rated for up to 50V DC operation
- Radial leads for secure through-hole PCB mounting
- Compact and board-friendly size
- Operating temperature: -40°C to +105°C
- Suitable for power supply smoothing, audio, analog/digital circuits
- Long life and reliable performance in various environments
1,00 EGP
In stock
In stock
11
People watching this product now!
Payment Methods:
Description
10µF 50V Radial Electrolytic Capacitor
- Capacitance: 10µF (microfarads)
- Voltage Rating: 50V
- Type: Radial Electrolytic
- Tolerance: ±20% (typically)
- Size: Radial leads
- Applications: Power supply filtering, decoupling, smoothing circuits, audio, signal coupling, and general-purpose electronic applications
- Operating Temperature Range: -40°C to +85°C (depending on manufacturer)
Specification
General
| Weight Weight | 0,0008 g |
|---|---|
| Dimension |
6.3×6.3×11 mm |
| Capacitance |
10 µF |
| Rated Voltage |
50 VDC |
| Tolerance |
±20% |
| Capacitor Type |
Aluminum Electrolytic (Polarized) |
| Mounting Type |
Through-Hole (Radial) |
| Lead Pitch |
2.5 mm |
| Lead Diameter |
0.5 mm |
| Operating Temperature |
-40°C to +105°C |
| Leakage Current (20°C) |
≤ 5 µA |
| Ripple Frequency |
100/120 Hz |
| Polarity Marking |
Negative stripe marking (-) |
