Terminal Block 3Pin 3.96mm Pitch

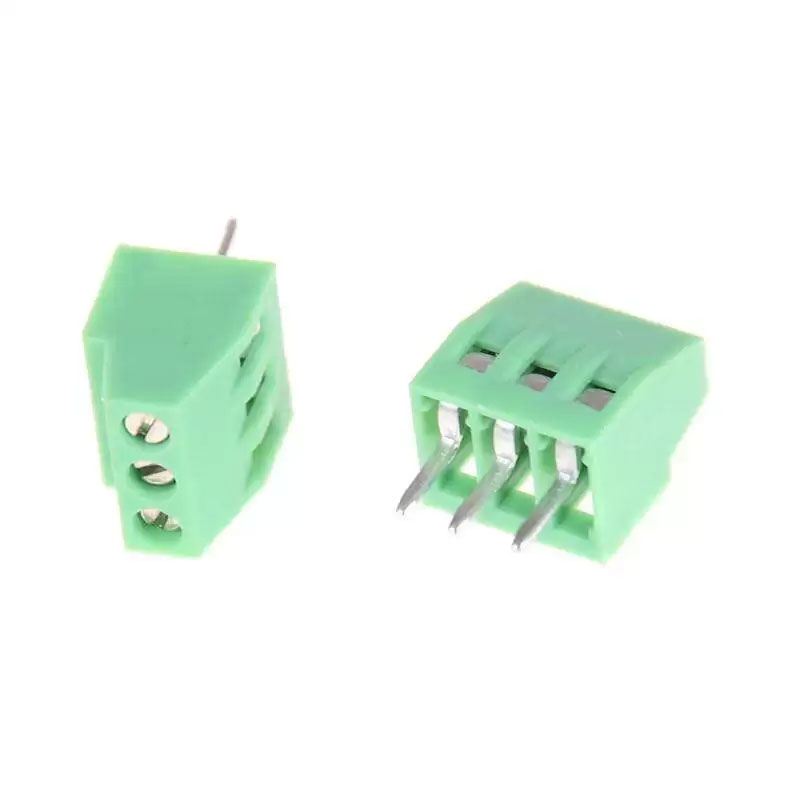

KF396-3.96-3P 3-Pin Screw Terminal Block – 3.96mm Pitch, Straight Pin

Detailed Description:
The KF396-3.96-3P is a high-quality 3-pin screw terminal block from Cixi Kefa Electronics, designed for secure and compact wire-to-board connections. With a standard 3.96mm pitch and straight pin mounting, it’s ideal for PCB applications requiring reliable power or signal connections.

This terminal block supports wire gauges from 18 to 24 AWG and is rated for up to 10A at 300V, making it suitable for a wide range of low to moderate current applications. It features a robust screw clamp mechanism to ensure strong electrical contact and easy wire insertion and removal.

With RoHS compliance, a temperature tolerance from -40℃ to +105℃, and durable green housing, the KF396-3.96-3P is a practical choice for industrial electronics, control systems, and prototyping.

Key Features:

• 3-Pin Terminal Block – Reliable wire-to-board connection

• Standard 3.96mm Pitch – Compatible with many PCB layouts

• Screw Clamp Design – Secure wire locking for vibration resistance

• Wide Wire Support – Accepts 18–24 AWG (0.75mm² max)

• Voltage & Current Rating – Handles up to 300V / 10A

• Straight Pin Mount – Easy through-hole PCB installation

• Temperature Range: -40℃ to +105℃

• RoHS Compliant – Environmentally friendly and safe for electronics

Applications:

• Power input/output terminals on PCBs

• Automation and industrial control systems

• Prototyping with microcontrollers

• DIY electronics and electrical panels

Specifications:

• Manufacturer: Cixi Kefa Electronics

• Part Number: KF396-3.96-3P

• Pitch: 3.96mm

• Pins: 3

• Current Rating: 10A

• Voltage Rating: 300V

• Wire Gauge: 18–24 AWG / 0.75mm²

• Mounting Style: Straight Pin, Through-hole

• Temperature Range: -40℃ to +105℃

• Color: Green

• RoHS Compliant: Yes
