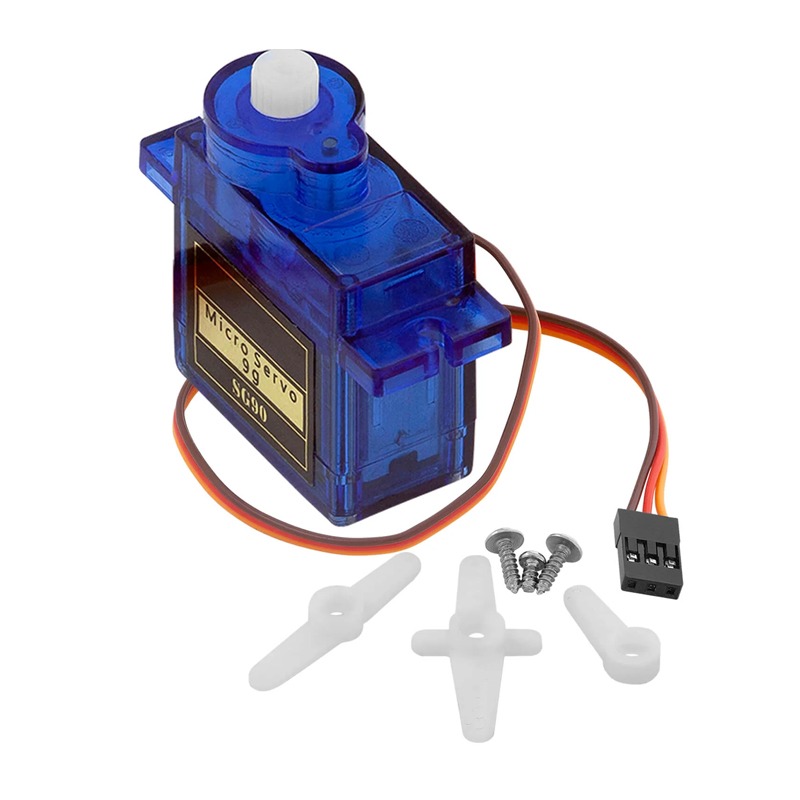

Micro Servo SG90 0 to180 degree 1.8 kg.cm Plastic Gears

  1. Model: SG90
  2. Weight: 9 gm
  3. Operating voltage: 3.0V~ 7.2V
  4. Servo Plug: JR
  5. Stall torque @4.8V : 1.2kg-cm
  6. Stall torque @6.6V : 1.6kg-cm
SKU: AA213 Categories: , Tag:

Original price was: EGP120.00.Current price is: EGP90.00.

In stock

In stock

Compare
Add to wishlist
12 People watching this product now!
  • Pick up from the Ekostra Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

1-3 Days

50 LE

  • Free 14-Day returns

Returns rules

Payment Methods:

Description

This servo motor is frequently used in many projects. It moves according to an angle you specify. It comes with its headers and cable. The heads can be attached with the help of small screws.

Specifications:

  • Transparent Body
  • light body
  • low noise level
  • Connection Cable 150mm
  • Dimensions: 22.6 x 21.8 x 11.4mm
  • Working speed (4.8V no load): 0.12seconds / 60 degrees
  • Starting torque (4.8V): 1.98 kg/cm
  • Operating temperature: – 30 to + 60 degrees
  • Dead bandwidth: 4usec
  • Working Voltage: 3.5 – 8.4 Volt
  • Recommended models: Mini car / Mini ship / Helicopter & Airplane
  • Net weight: 13g
  • Color: blue

Scope of application:

  • Automatic door
  • mini helicopter
  • Mini Plane
  • Mini Car
  • Mini Ship
  • Mini valve control
  • robotic arm

Package Included:

  • 1x Tower Pro Micro Servo 9g SG90
  • 1x Servo head set

Specification

Overview

Model

SG90
Weight(gm)

9
Operating Voltage (VDC)

3.0 ~ 7.2
Operating Speed @4.8V

0.10sec/60°
Stall Torque @ 4.8V (Kg-Cm)

1.2
Stall Torque @6.6V (Kg-Cm)

1.6
Operating Temperature (°C)

-30 to 60
Dead Band Width ( μs)

7
Gear Type

Glass Fiber
Rotational Degree

180º
Servo Plug

JR
Cable Length (cm)

25

Shipping Info

Weight 9.0000 g
Dimensions 22.8 × 12.6 × 34.5 mm
