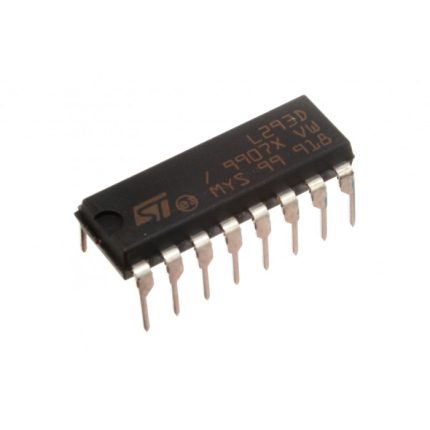

L293D 2-Channel Driver H-bridge
35,00 EGP
In stock
✅ Dual-channel H-bridge motor driver
✅ 36V, 600mA per channel (1.2A peak)
✅ TTL/CMOS compatible logic inputs
✅ Internal protection diodes
✅ Ideal for Arduino, Raspberry Pi, and small robotics
In stock
Shipping & Delivery
Receipt from the place on the same day or shipping to nearby places
On the same day
6PM - 10 PM
Delivery through a fast shipping company intermediary
1-3 Days
Description
L293D – Dual H-Bridge Motor Driver IC
📄 Description:
The L293D is a versatile quad half-H driver, typically used to drive two DC motors or one stepper motor in both directions. Designed using bipolar technology, it can source or sink up to 600mA per channel (1.2A peak) and supports motor voltages up to 36V.
With built-in internal clamp diodes, TTL logic compatibility, and separate logic and motor power supplies, the L293D is ideal for compact motor control projects and is widely used in Arduino and robotics applications.
📐 Specifications:
| Parameter | Value |
|---|---|
| Motor Supply Voltage (V<sub>s</sub>) | 4.5V – 36V |
| Logic Supply Voltage (V<sub>ss</sub>) | 4.5V – 7V |
| Output Current per Channel | 600mA continuous |
| Peak Output Current | 1.2A (non-repetitive) |
| Logic Input Compatibility | TTL/CMOS |
| Output Clamp Diodes | Internal |
| Control Inputs | IN1, IN2, IN3, IN4 |
| Enable Pins | EN1 (Motor A), EN2 (Motor B) |
| Package Types | DIP-16 / SOIC-16 |
| Operating Temperature | -0°C to +70°C |
🌟 Key Features:
-
🔁 Dual H-Bridge Driver – Drives 2 DC motors or 1 stepper motor
-
⚡ Motor Voltage up to 36V – Suitable for a wide range of motors
-
💪 600mA Continuous Output Current – 1.2A peak
-
🛡️ Built-in Clamp Diodes – For inductive load protection
-
🧩 Separate Logic and Motor Power Inputs
-
⚙️ TTL/CMOS Compatible Control
-
📦 Compact DIP/SOIC Package
⚙️ Applications:
-
🤖 Arduino & Embedded Motor Control Projects
-
🚗 Robotics (Smart Cars, Line Followers)
-
🌀 Bipolar Stepper Motor Control
-
🛠️ Relay and Solenoid Drivers
-
🧰 Basic Mechatronics Systems
-
📟 Toy and Hobby Electronics
