ATMEGA328P-AU SMD
- 🧠 ATmega328P-AU microcontroller in SMD (TQFP) package
- ⚡ Popular MCU used in Arduino Uno/Nano-compatible designs
- 🧩 Ideal for custom PCBs, embedded projects, and prototyping
- 🚌 Supports UART / SPI / I2C(TWI) communication
- ⏱️ Runs up to 20MHz with external crystal support
- 💾 Built-in Flash + SRAM + EEPROM for program & data storage
- 🔌 Works with 3.3V or 5V systems (depending on clock setup)
- 🛠️ Programmable via ISP or bootloader (Arduino environment)
150,00 EGP
In stock
In stock
Payment Methods:
Description

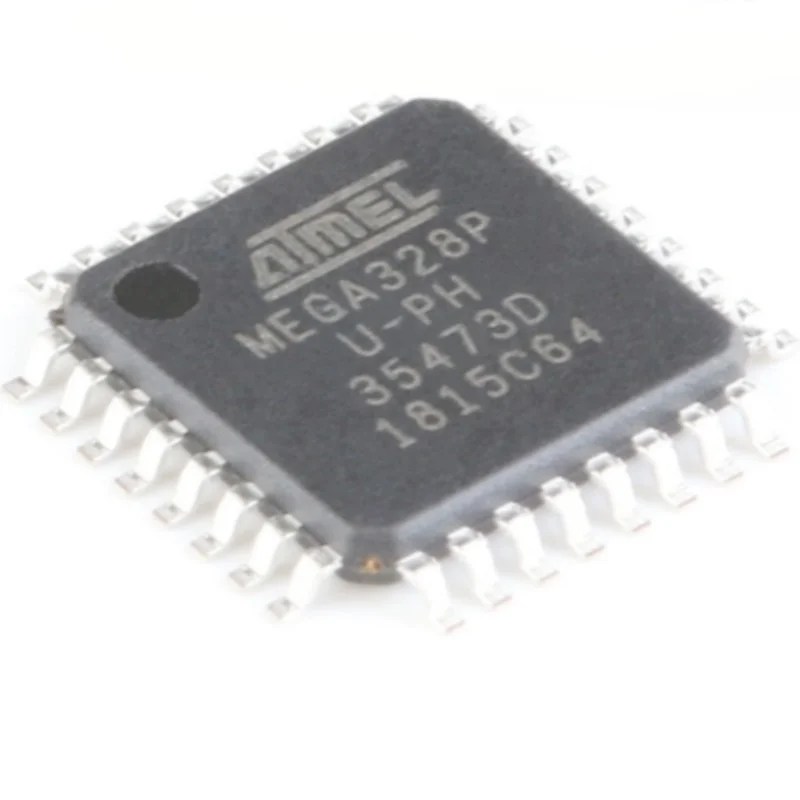

The ATMEGA328P-AU is a high-performance 8-bit microcontroller from Atmel (now Microchip) in a compact SMD TQFP-32 package. Widely used in Arduino boards and DIY electronics, it features low power consumption, flexible I/O options, and high reliability for embedded systems, robotics, and automation projects.
Features
-
8-bit AVR RISC microcontroller for fast and efficient processing
-
32KB Flash memory for program storage
-
2KB SRAM and 1KB EEPROM for data storage
-
Wide operating voltage: 1.8V to 5.5V
-
Low power consumption with multiple sleep modes
-
High-speed SPI, I2C, UART interfaces for versatile connectivity
-
PWM, ADC, and timers for precise control of peripherals
-
Compact SMD TQFP-32 package suitable for surface mount PCB design
-
Widely compatible with Arduino IDE and open-source platforms
Specifications
-
Model: ATMEGA328P-AU
-
Architecture: 8-bit AVR
-
Flash Memory: 32KB
-
SRAM: 2KB
-
EEPROM: 1KB
-
Operating Voltage: 1.8V – 5.5V
-
Max Clock Speed: 20 MHz
-
Digital I/O Pins: 23
-
ADC Channels: 8
-
PWM Channels: 6
-
Package: SMD TQFP-32
-
Temperature Range: -40°C to 85°C
-
Applications: Arduino boards, embedded systems, robotics, IoT projects, sensor control
Specification
General
| Weight Weight | 0,0003 g |
|---|---|
Dimensions
|
0,7 × 0,7 × 0,1 mm |
| Product Name |
ATMEGA328P-AU SMD |
| Microcontroller |
ATmega328P |
| Architecture |
8-bit AVR |
| Package Type |
TQFP-32 (SMD) |
| Clock Speed |
Up to 20 MHz |
| Flash Memory |
32 KB |
| SRAM |
2 KB |
| EEPROM |
1 KB |
| Operating Voltage |
1.8V – 5.5V |
| Digital I/O Pins |
23 |
| Analog Input Pins |
6 |
| Communication Interfaces |
UART, SPI, I2C (TWI) |
| Low Power Modes |
Yes |
| Application |
Arduino-Compatible Boards, Embedded Systems, DIY Electronics |
